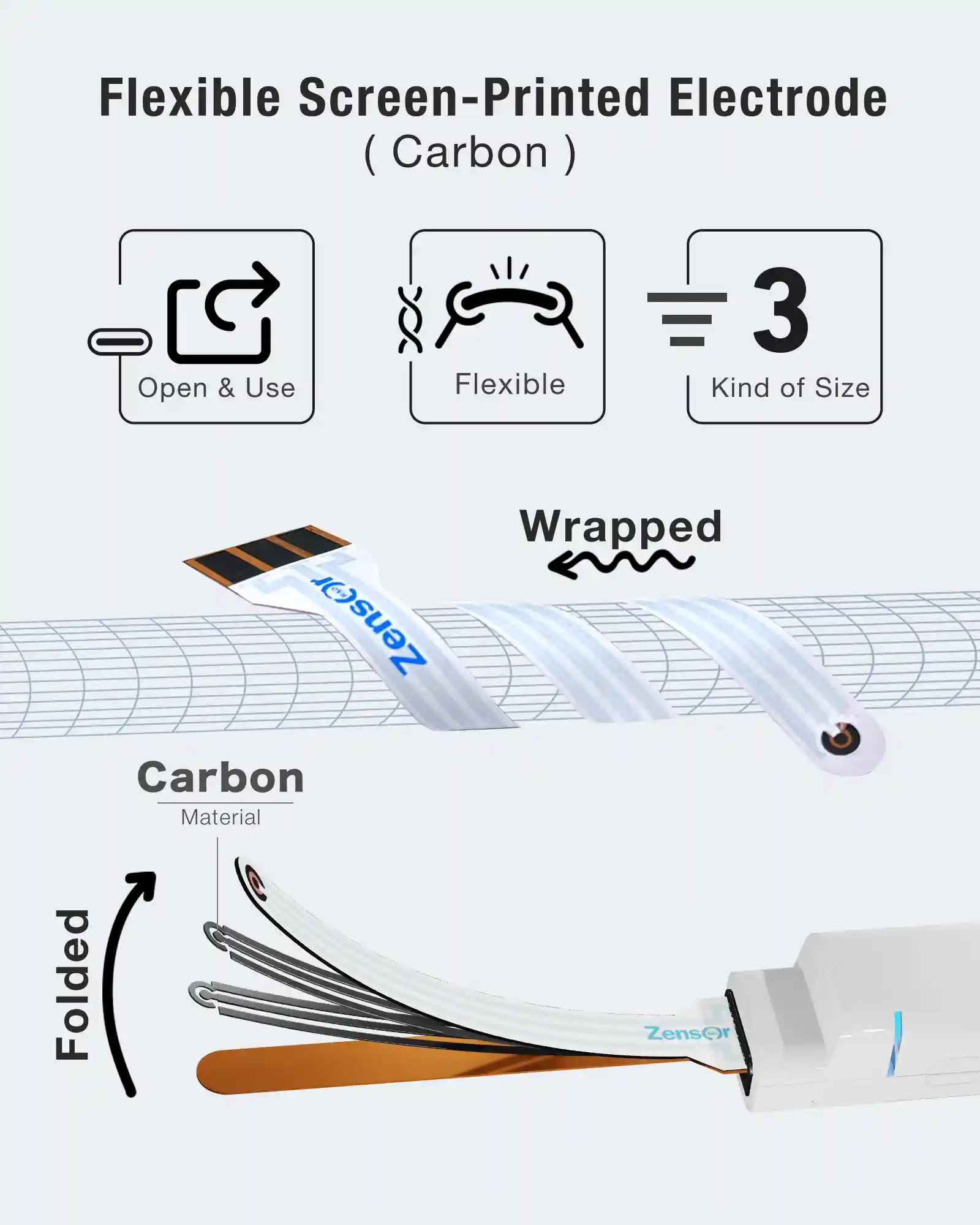

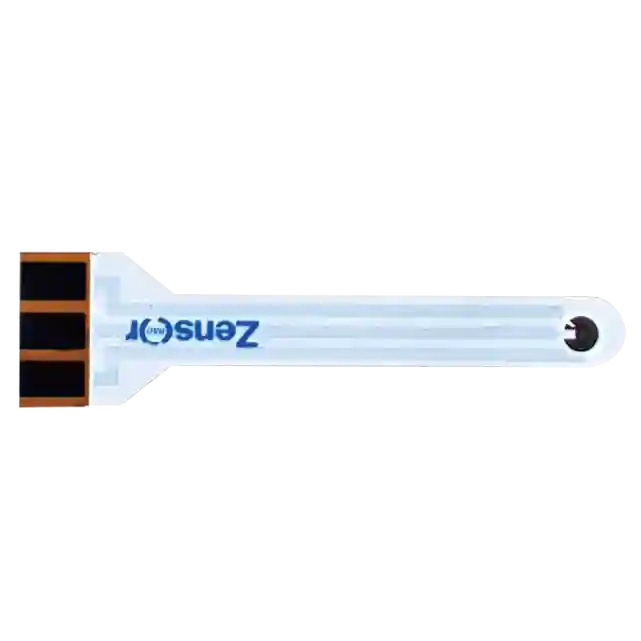

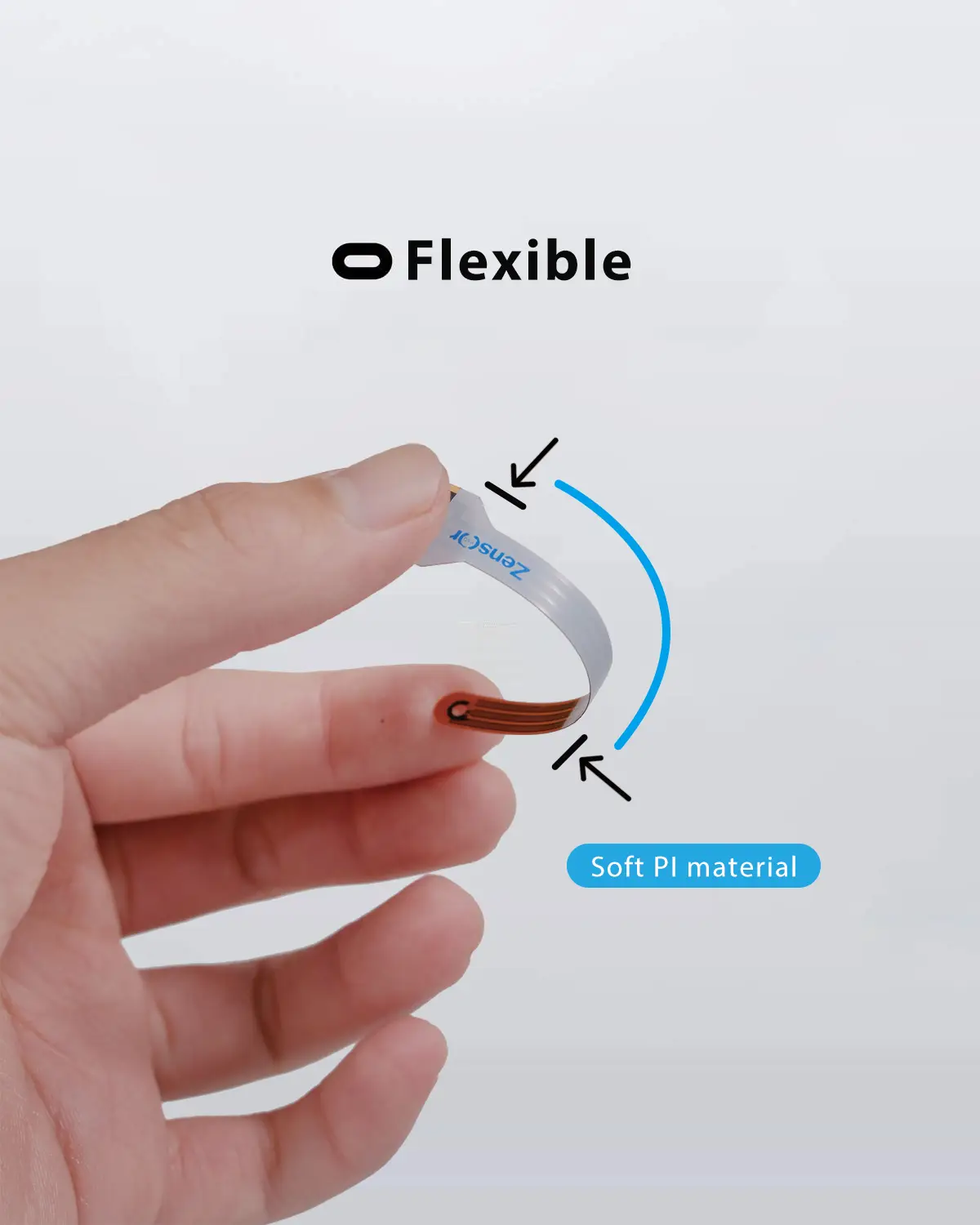

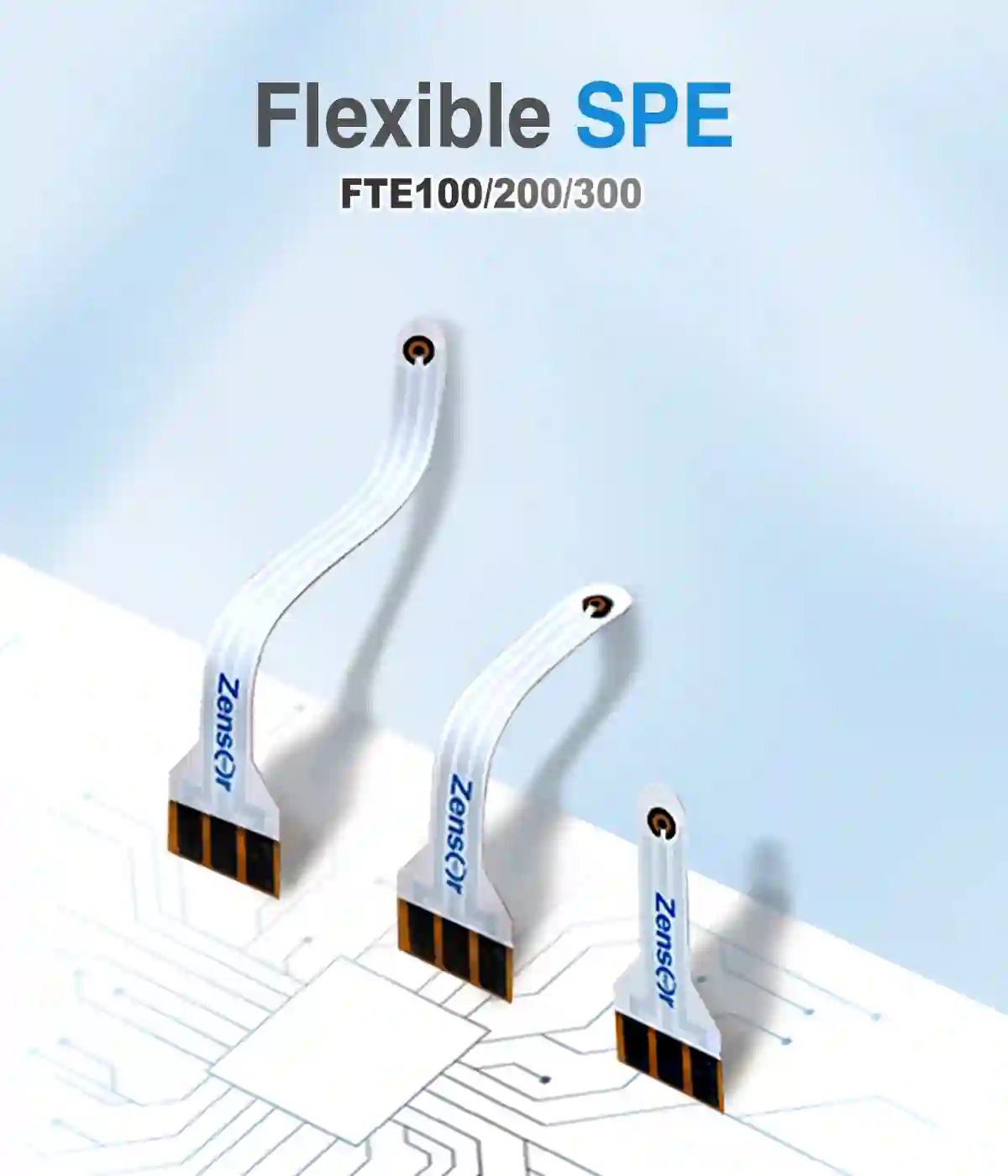

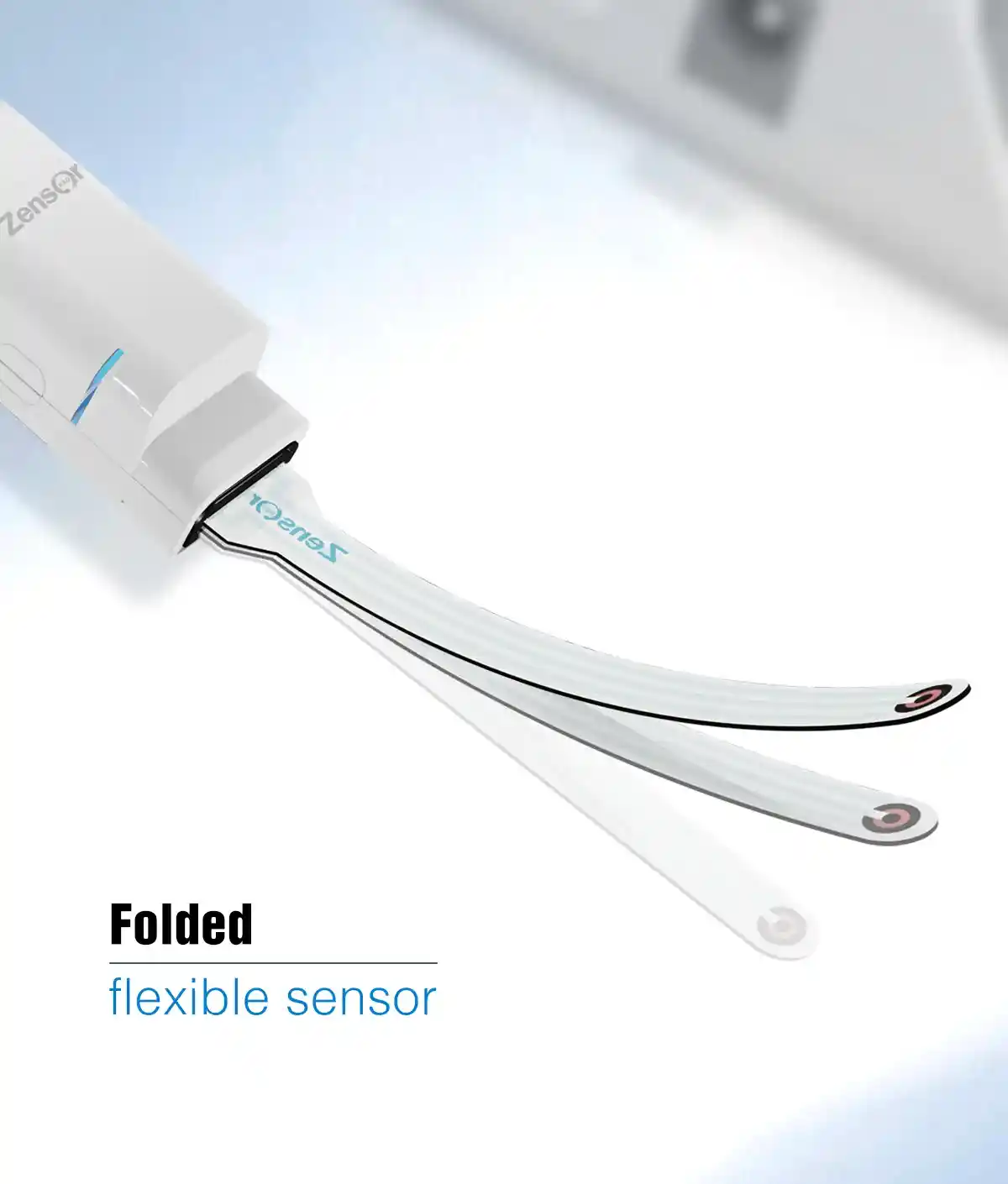

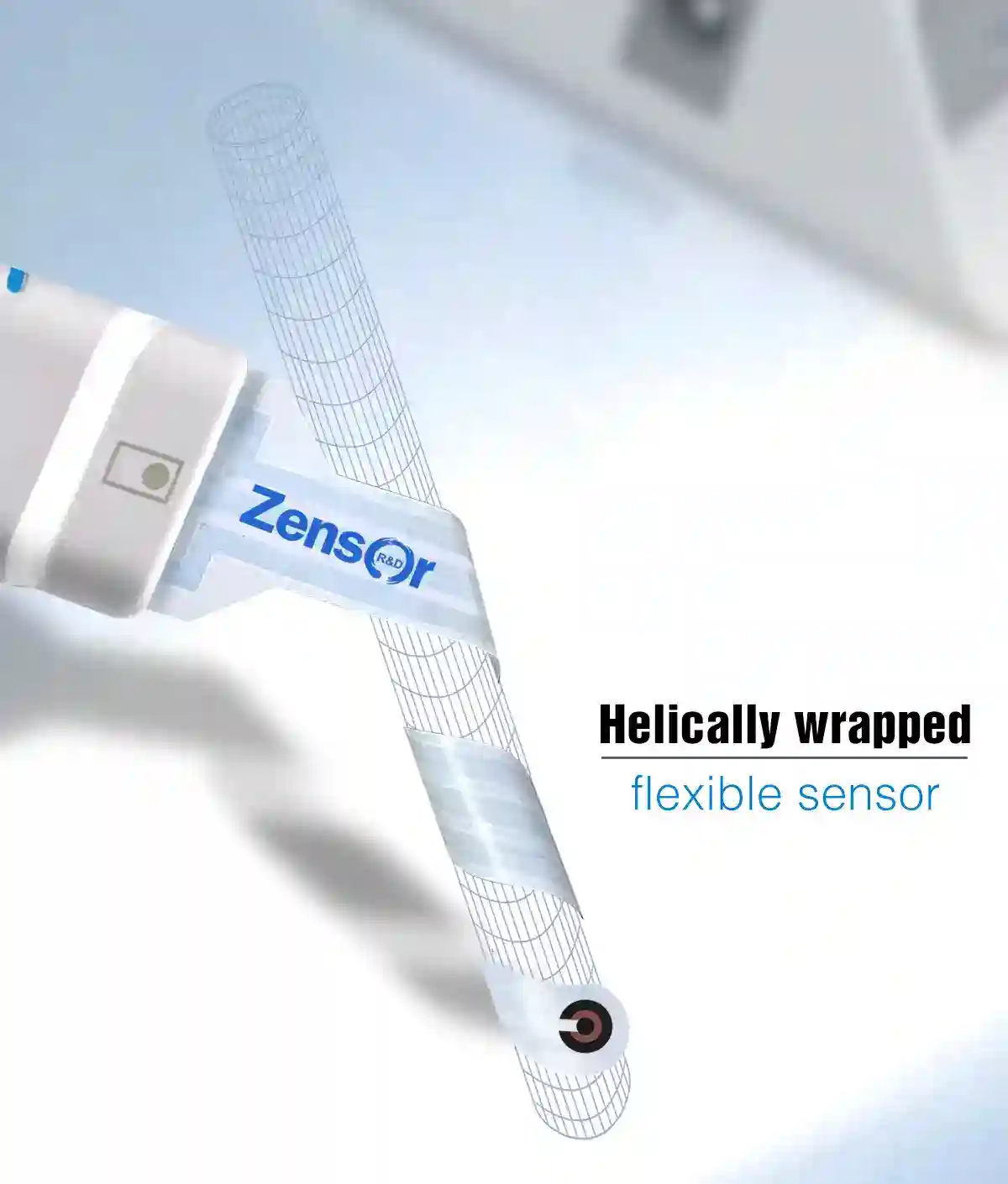

Flexibility for easy bending and wrapping Disposable design, no maintenance or pretreatment Excellent biocompatibility with PI material Superior electrochemical performance after bending Customized service Flexibility for easy bending and wrapping Disposable design, no maintenance or pretreatment Excellent biocompatibility with PI material Superior electrochemical performance after bending Customized serviceThe flexible disposable screen-printed electrode is made of DuPont™ Polyimide (PI) material, which allows easy bending and wrapping to adapt to various shapes and sizes of sampling surfaces, organs, or tissues. It offers greater flexibility and applicability in the development of biosensors for prototype in laboratory or medical fields.
Our screen-printing production production line is equipped with a high-standard quality management system, ensuring that each disposable screen-printed flexible electrode manufactured by Zensor possesses outstanding electrochemical performance and a batch-to-batch variation of less than 5%. This means that the flexible electrodes developed by Zensor provide highly stable and reproducible results in different experimental.
The substrate material of the flexible disposable screen-printed electrode is polyimide (PI). PI has excellent biocompatibility, making it an ideal material for use in biosensors.

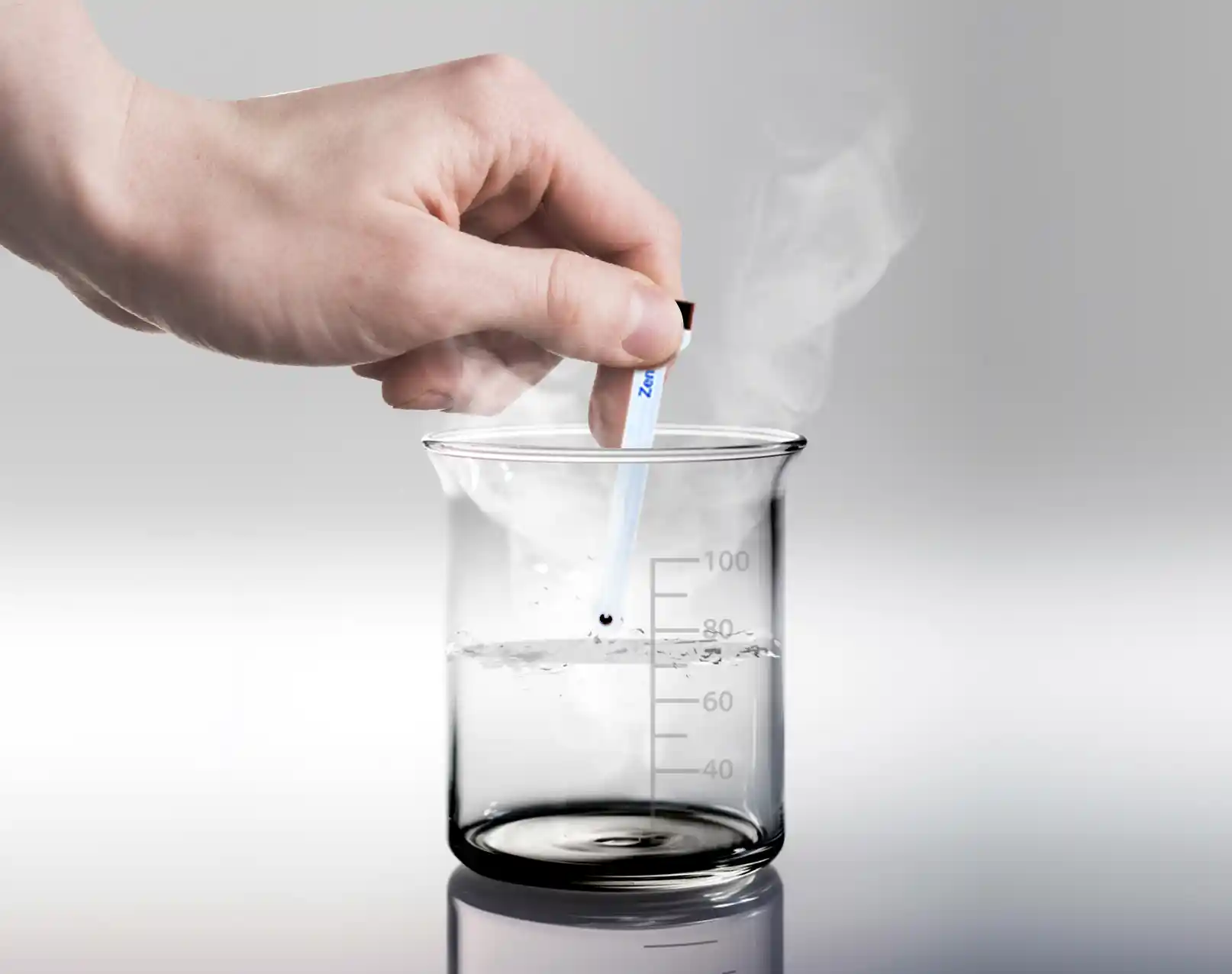

Polyimide has higher temperature stability than the PE and PC materials commonly used in screen printing electrodes.

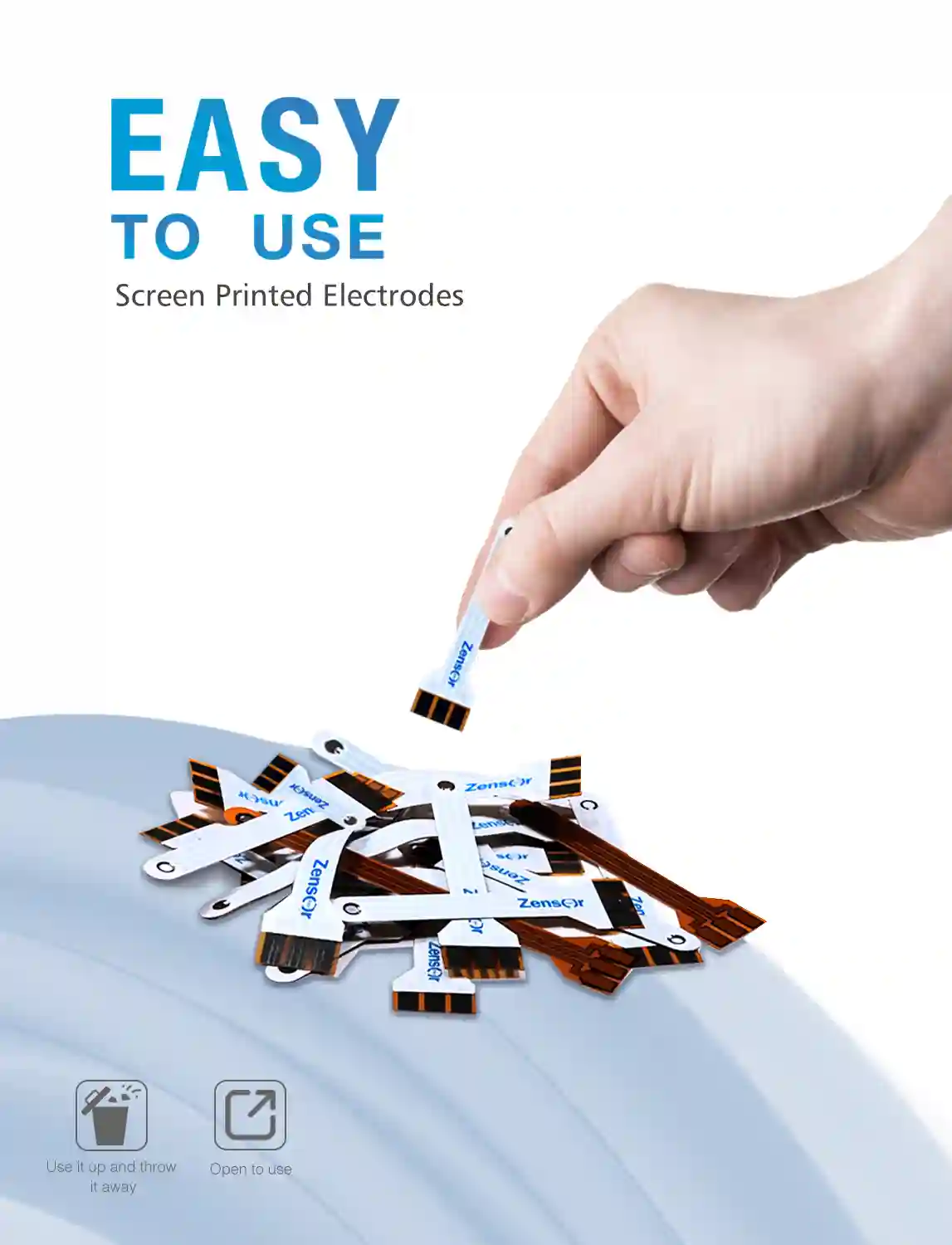

Samples detected by biosensors are often complex in composition, which may contain proteins, sticky substances, etc., that are not easy to clean or can contaminate the electrode surface. Whether it is laboratory research or product development, the disposable electrode design can make every test more convenient and accurate.
Wearable biosensors need to adhere to the surface of the human body or animals and provide a comfortable and effortless wearing experience during long-term activities. They should also deliver real-time and accurate biological sensing signals. These electrodes are suitable for detecting sweat, secretions, and can be used in the development of non-invasive testing products.

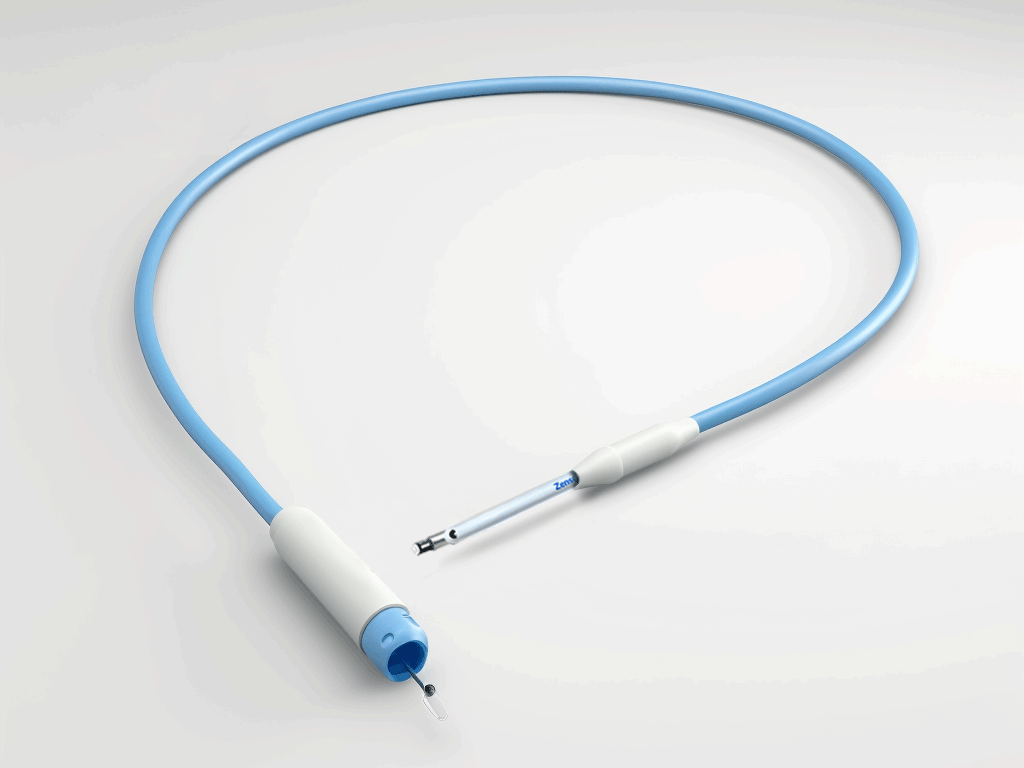

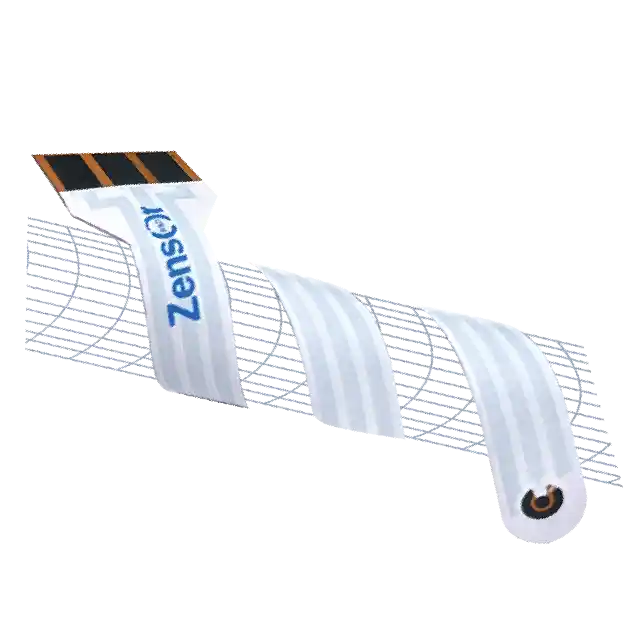

Note: The image above is for illustrative purposes only.The flexible electrodes can be used in conjunction with catheters, probes, or endoscopic systems to construct electrochemical sensing elements for pipeline detection or endoscopic biosensors. This allows for easy access and continuous in-situ detection in narrow pipes and small spaces.
The flexible SPE electrodes can directly connect with the Zensor ECWP series - wireless electrochemical analyzers. In ECWP system, sensor can be connected to smartphones or computer through wireless technology. It will help to set single-channel or multi-channel experimental platforms and integrate electrode reactions, signal testing, data collection, transmission, and analysis conveniently .
Note: The image above is for illustrative purposes only.

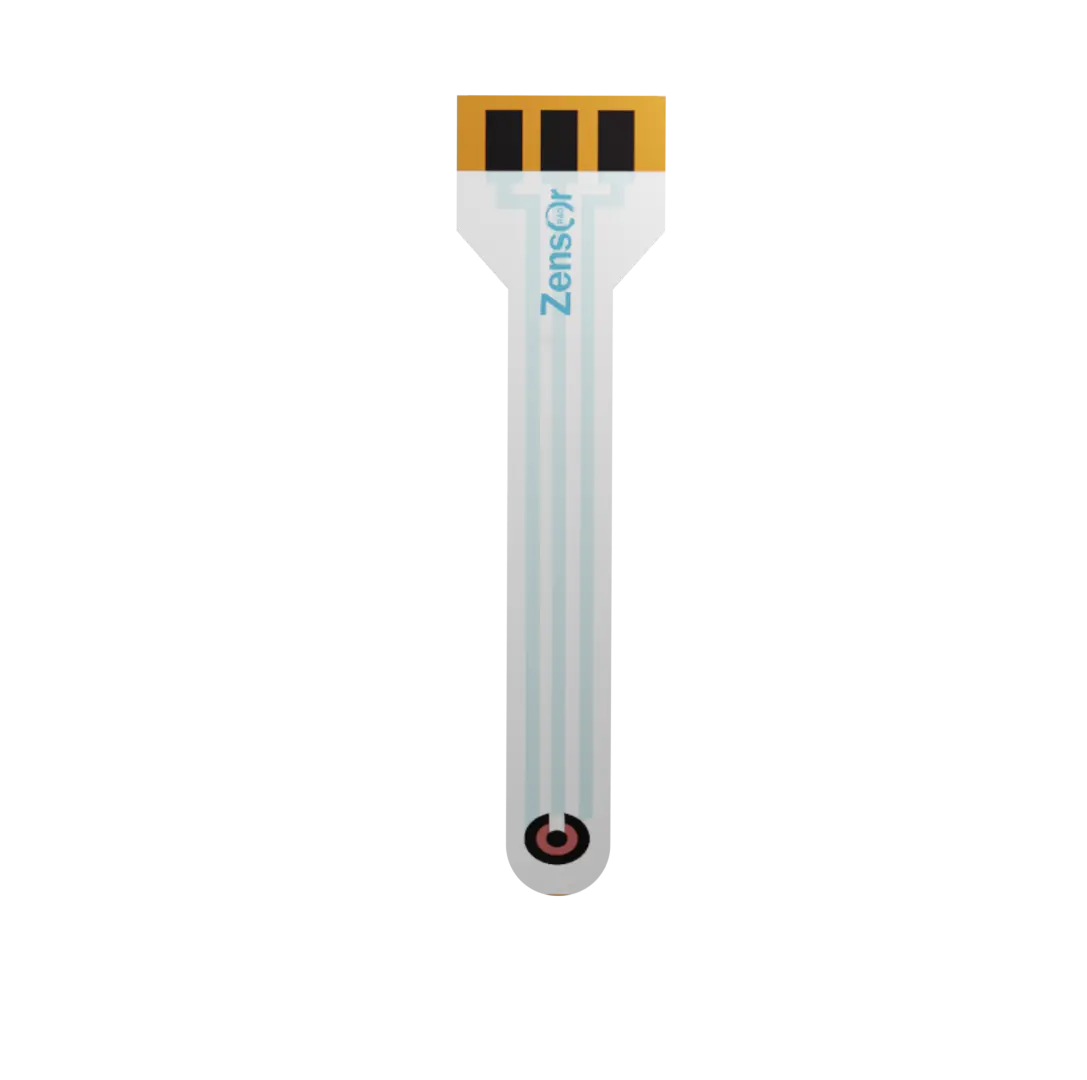

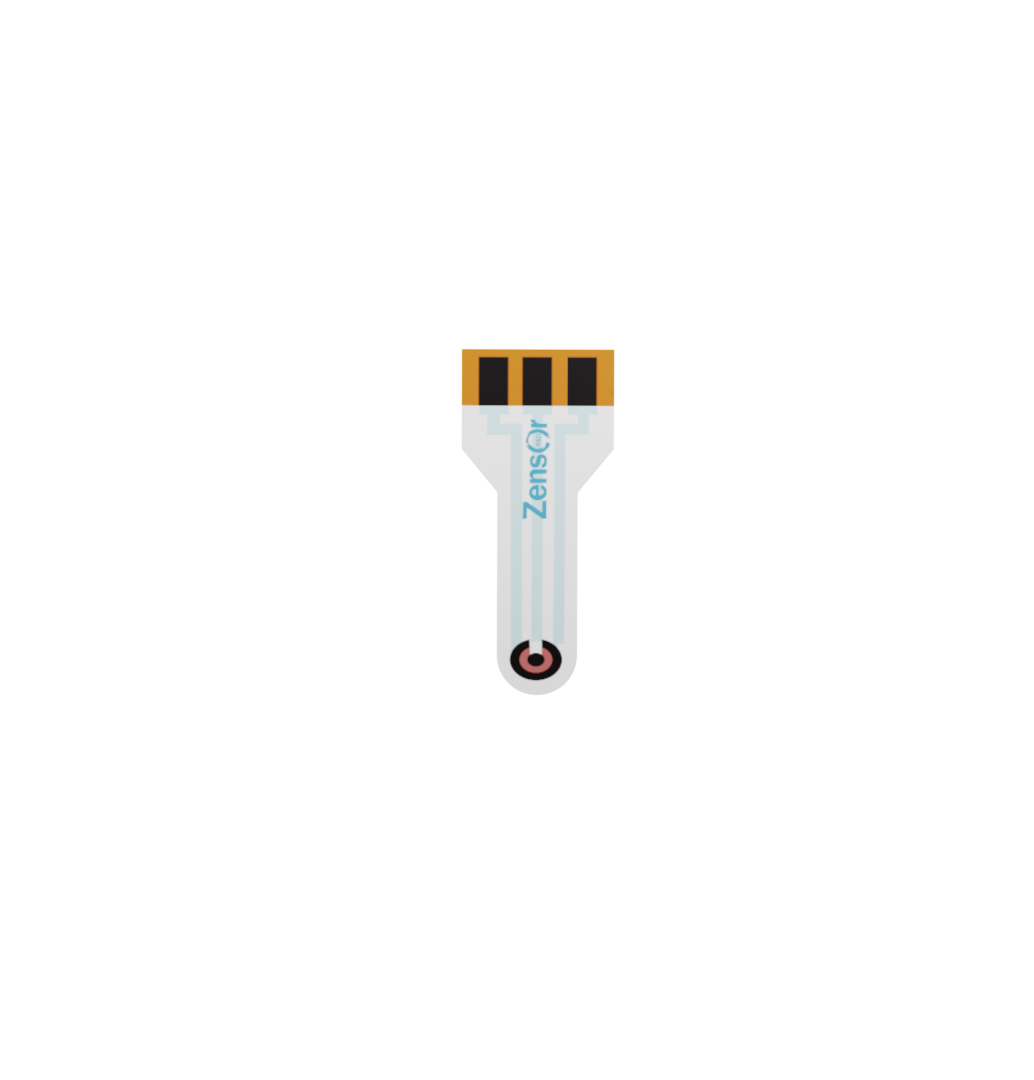

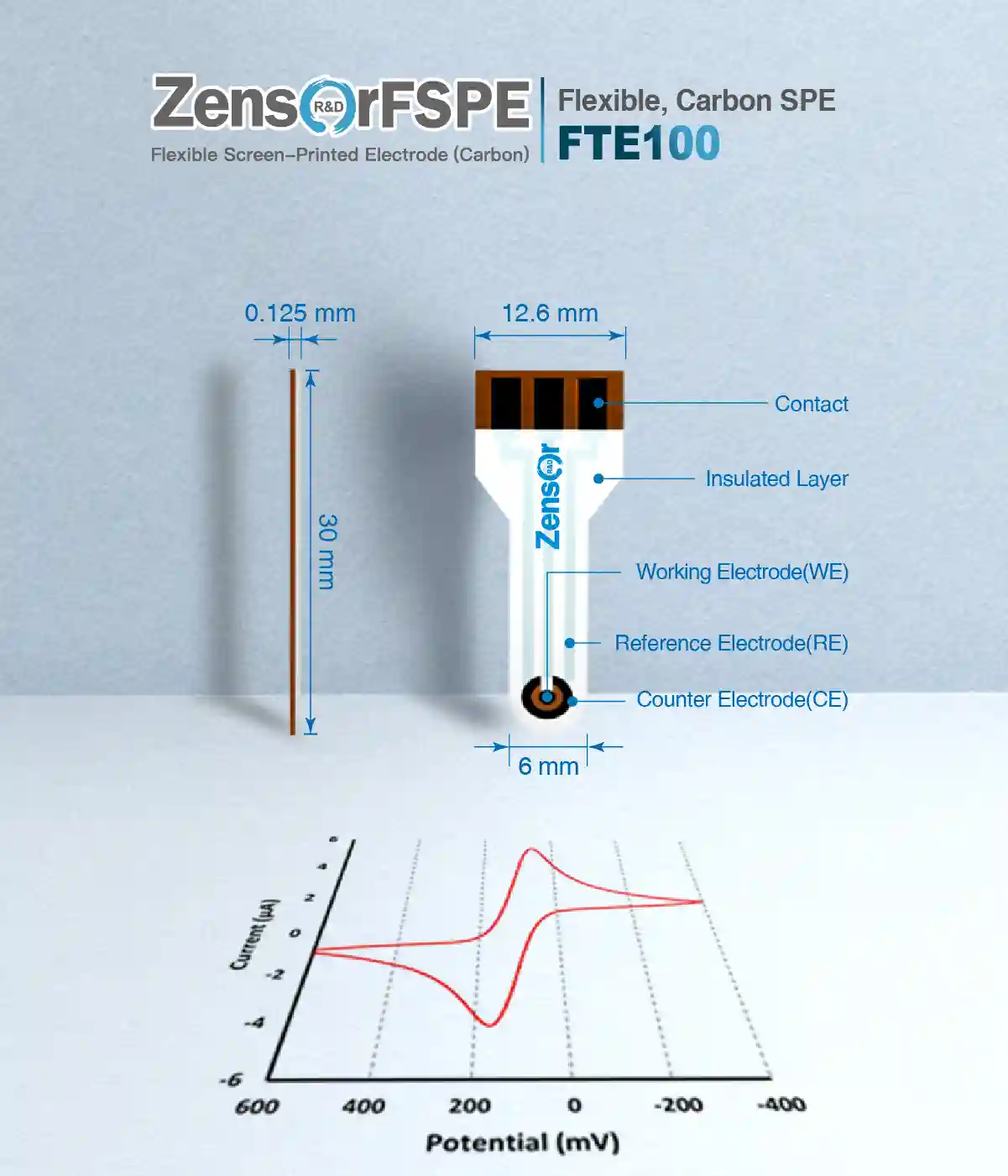

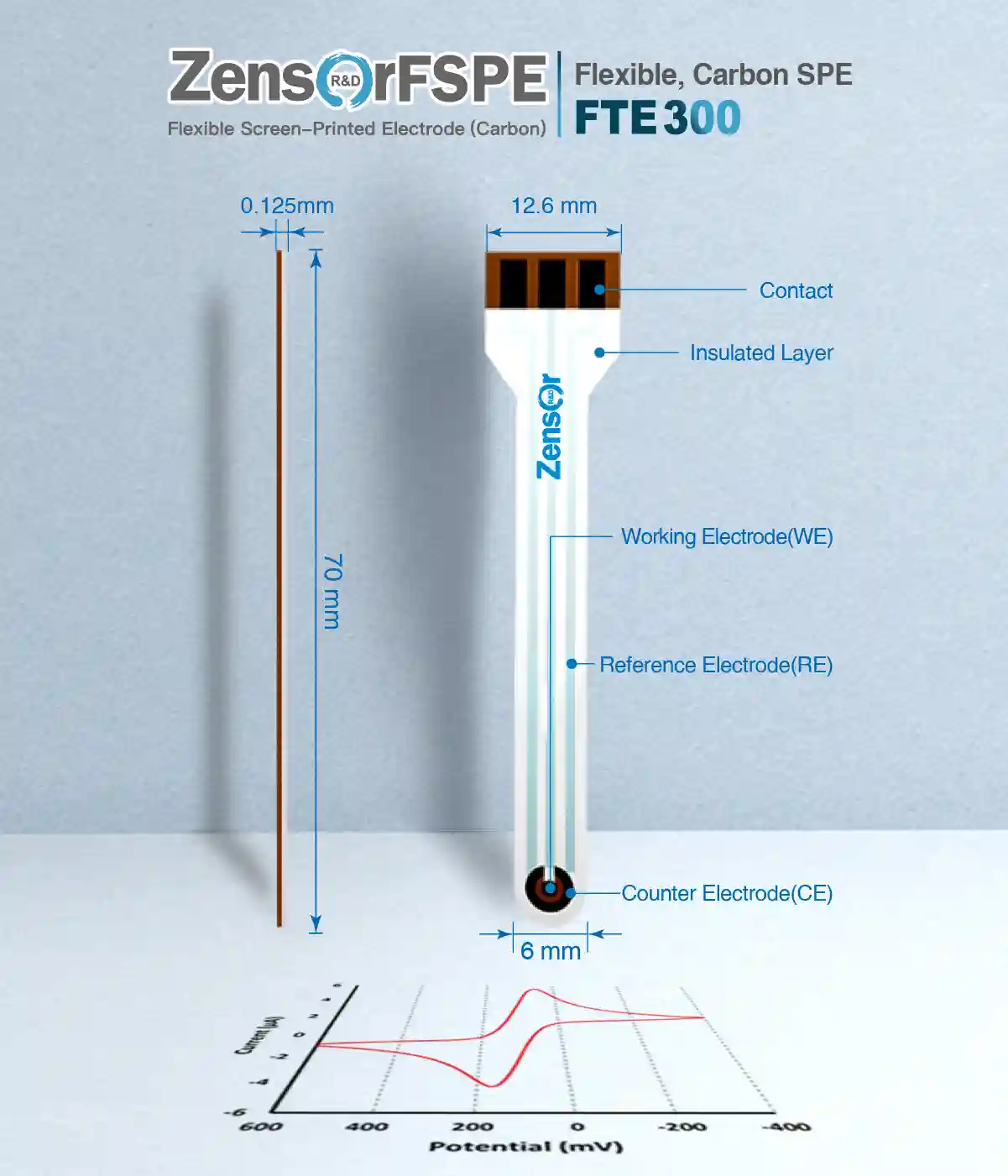

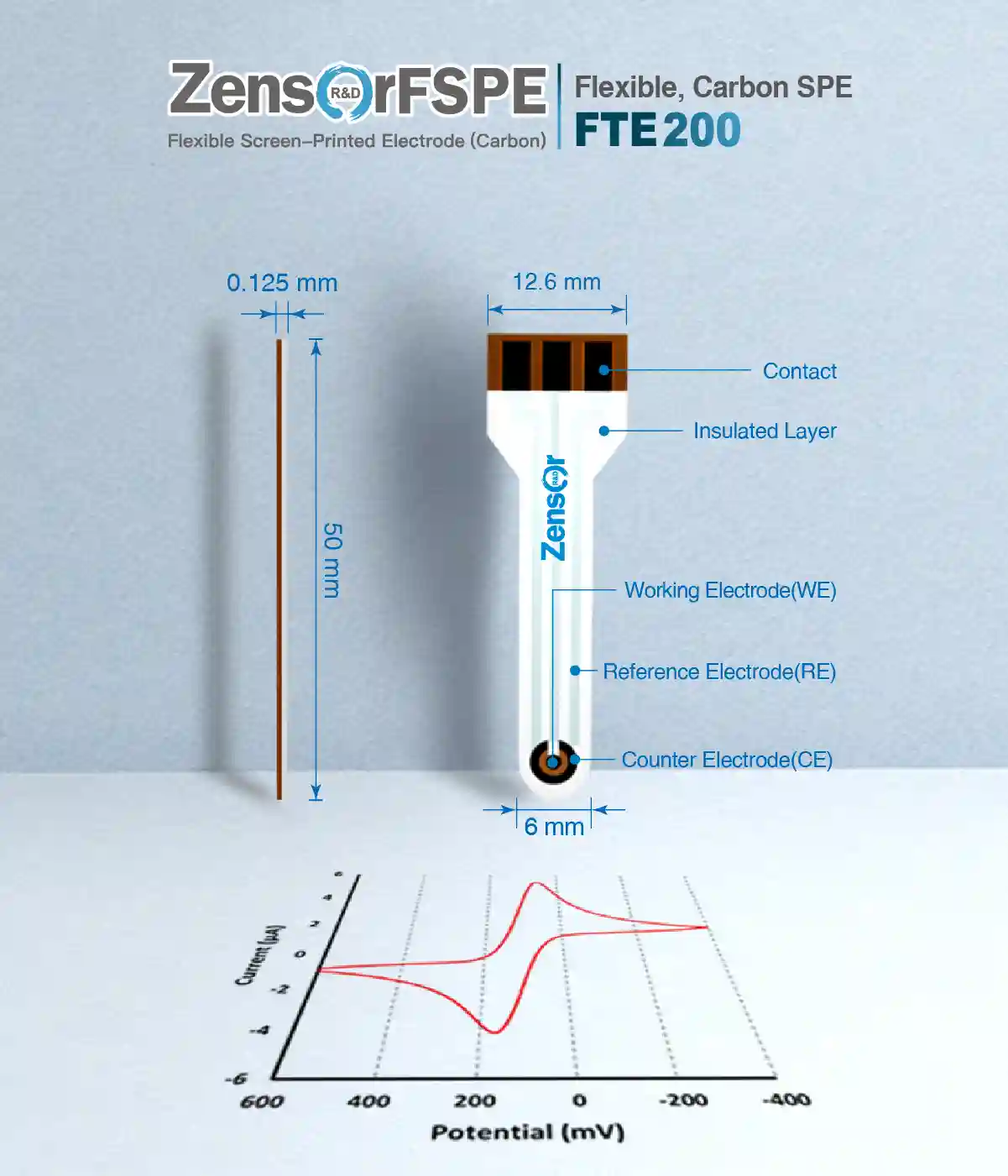

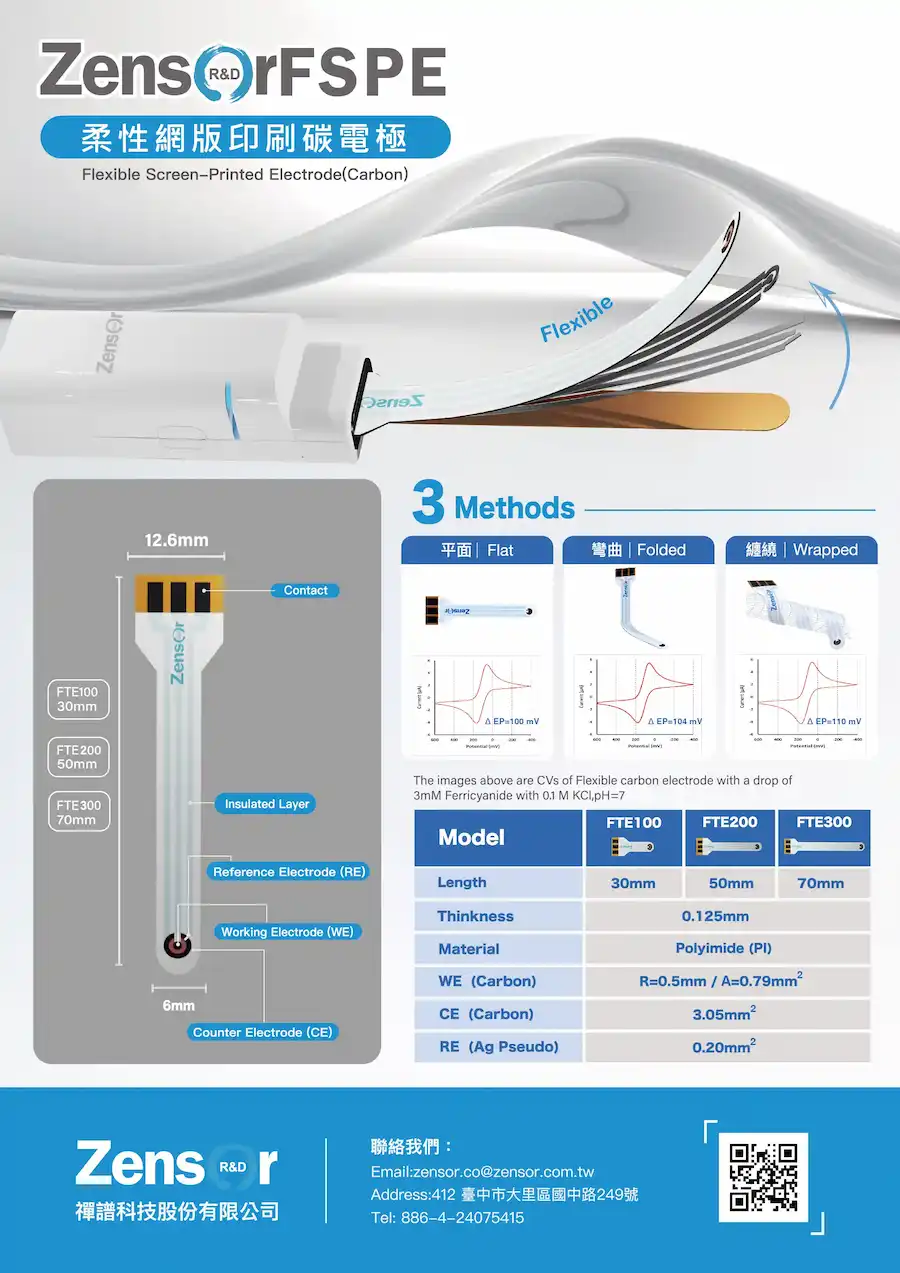

| Model | FTE100 | FTE200 | FTE300 |
|---|---|---|---|
| Length | 30mm | 50mm | 70mm |
| Thickness | 0.125mm | 0.125mm | 0.125mm |
| Material | Polyimide (PI) | Polyimide (PI) | Polyimide (PI) |
| WE (Carbon) | R=0.5mm / A=0.79mm | R=0.5mm / A=0.79mm | R=0.5mm / A=0.79mm2 |
| CE (Carbon) | 3.05mm 2 | 3.05mm 2 | 3.05mm 2 |
| RE (Ag Pseudo) | 0.20mm 2 | 0.20mm 2 | 0.20mm 2 |
Screen printed electrodes/ SPE
| Model | TE100 | TE200 | TE300 | FTE100 | FTE200 | FTE300 | SE100 | SE101 | SE102 | Ag100 |
|---|---|---|---|---|---|---|---|---|---|---|
| Electrode system | 3 electrodes | 3 electrodes | 3 electrodes | 3 electrodes | 3 electrodes | 3 electrodes | single electrode | single electrode | single electrode | single electrode |
| Base plate | PP | PP | PP | PI | PI | PI | PP | PP | PP | PP |
| Size of base plate（mm*mm | 12.6*50 | 12.6*50 | 12.6*30 | 12.6/6*30 | 12.6/6*50 | 12.6/6*70 | 12.6*50 | 12.6*50 | 12.6*50 | 12.6*50 |
| Material of WE | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon | Ag |
| Size of WE | R=3mm | 2*1mm | R=3mm | R=0.5mm | R=0.5mm | R=0.5mm | R=5mm | R=3mm | R=1.5mm | R=5mm |
| Area of WE (mm2) | 7.1 | 2.0 | 7.1 | 0.79 | 0.79 | 0.79 | 19.6 | 7.1 | 1.8 | 19.6 |
| Material of RE | Ag Pseudo | Ag Pseudo | Ag Pseudo | Ag Pseudo | Ag Pseudo | Ag Pseudo | - | - | - | - |
| Area of RE(mm2) | 1.0 | 2.0 | 1.0 | 0.2 | 0.2 | 0.2 | - | - | - | - |
| Material of CE | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon | - | - | - | - |
| Area of CE (mm2) | 5.0 | 4.0 | 5.0 | 3.05 | 3.05 | 3.05 | - | - | - | - |
Interdigitated electrodes
| 型號 | AUSE100 | AUTE100 | AUTE100AgCI | AUTE200 | AUTE200AgCI |
|---|---|---|---|---|---|
| Electrode system | single electrode | 3 electrode | 3 electrode | 3 electrode | 3 electrode |
| Base plate | PC | PC | PC | PC | PC |
| Size of base plate（mm*mm | 12*50 | 12*50 | 12*50 | 12*50 | 12*50 |
| Material of WE | Gold | Gold | Gold | Gold | Gold |
| Size of WE | R=5mm | R=3mm | R=3mm | R=2*1mm | R=2*1mm |
| Area of WE (mm2) | 19.6 | 7.1 | 7.1 | 2.0 | 2.0 |
| Material of RE | - | Gold | AgCI | Gold | AgCI |
| Area of RE(mm2) | - | 1.0 | 1.0 | 2.0 | 2.0 |
| Material of CE | - | Gold | Gold | Gold | Gold |
| Area of CE (mm2) | - | 5.0 | 5.0 | 4.0 | 4.0 |
In order to meet your special research needs, we can also adjust the design, material and specification of the electrode. let your imagination take you everywhere
With our advanced technology and rich experience of product development , we provide you with professional OEM, ODM services
