Hello
Welcome to Zensor

Electrochemical
Flow Cell

SF100

  • Continuous electrochemical process analyzer
  • Excellent margin fitness & durable
  • Used in conjunction with HPLC or FIA

Electrochemical
Flow Cell

SF100

  • Continuous electrochemical process analyzer
  • Excellent margin fitness & durable
  • Used in conjunction with HPLC or FIA

  • By connecting with the Flow injection System or high performance liquid chromatography (HPLC), you can easily build a continuous on-line electrochemical detector system with our Electrochemical Flow Cell, thus providing a sensitive and reliable electrochemical detection platform. Its various detection methods are suitable for a wide range of compounds.

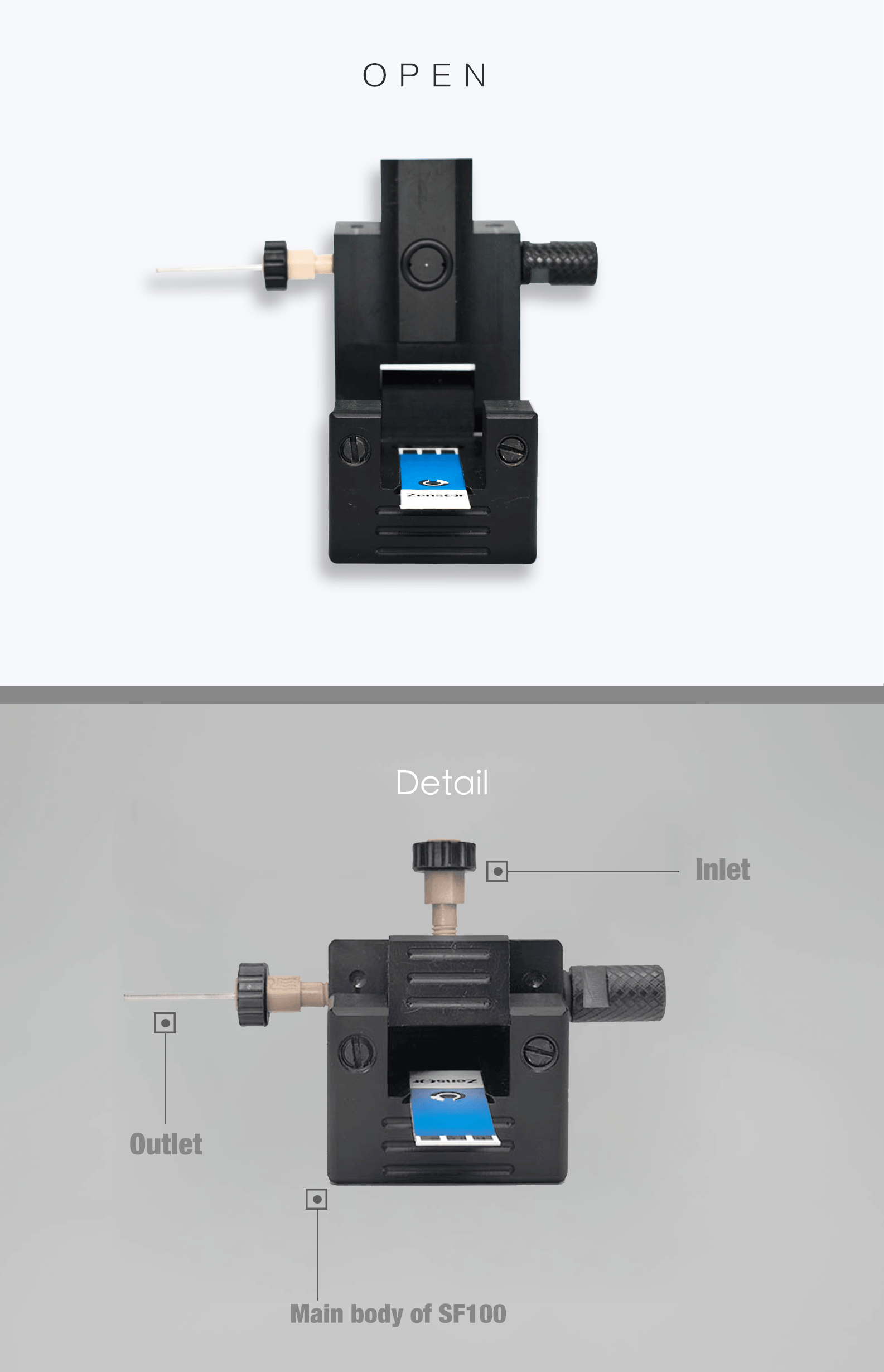

  • Precise Structure

    The vertical injection and side derived design can effectively reduce bubble generation and reduce disturbance during on-line detection. Polyoxymethylene, the main material, has high density and is not easy to deform.

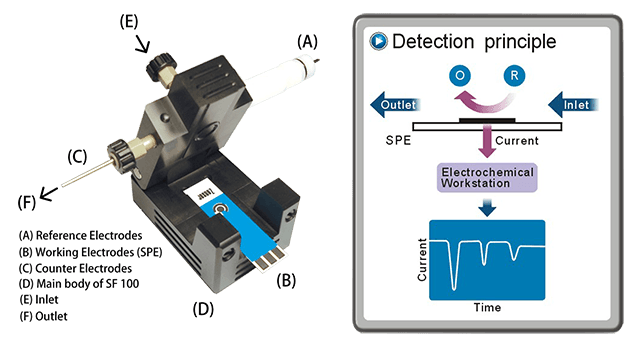

    Structure and principle of Electochemical
                                Flow cell-Zensor R&D-SF100

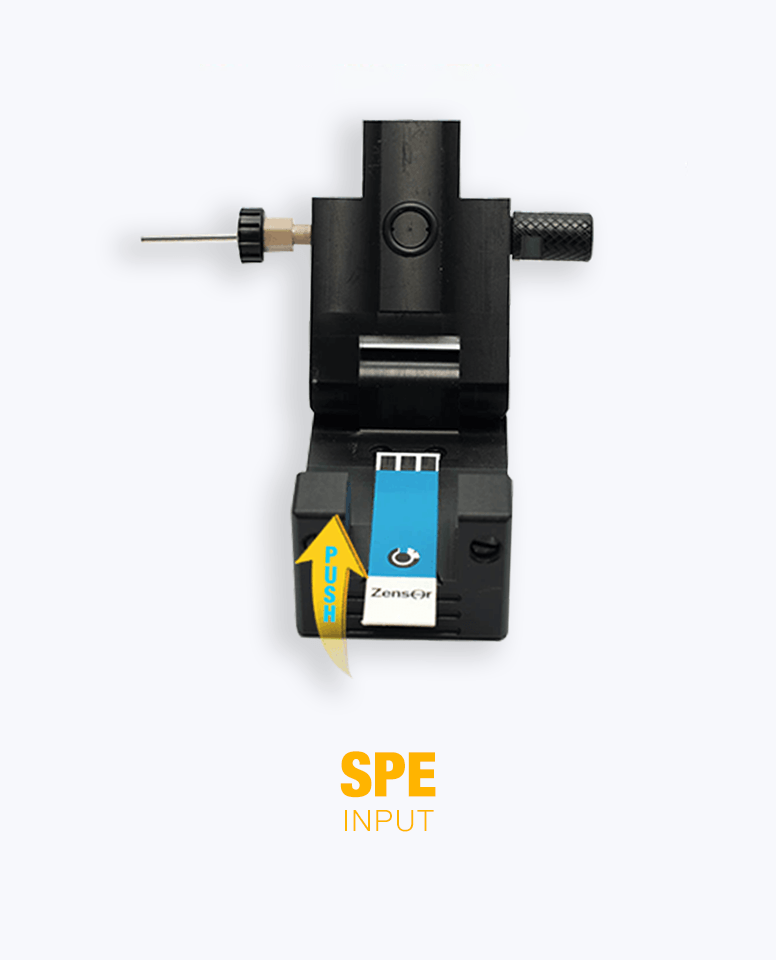

  • Conjunction with High Performance Liquid Chromatography(HPLC)

    Conjunction with High Performance
                                      Liquid Chromatography(HPLC)and SPE
                                      Electochemical Flow cell-Zensor
                                      R&D-SF100
  • Combined with Flow Injection Analysis(FIA)

    Flow Injection
                                      Analysis (dopamine/glucose) with
                                      Electochemical Flow cell-Zensor
                                      R&D-SF100
  • Apply to Detect a Wide Range of Components

    Kinetics ,Hydrodynamic voltammetry detection system

    Electroactive compound:Ferricyanide,Catechol,etc.


    Neurotransmitter:Dopamine,L-Dopa,etc.


    Volatile substance:Alcohols, Aldehydes ,etc.

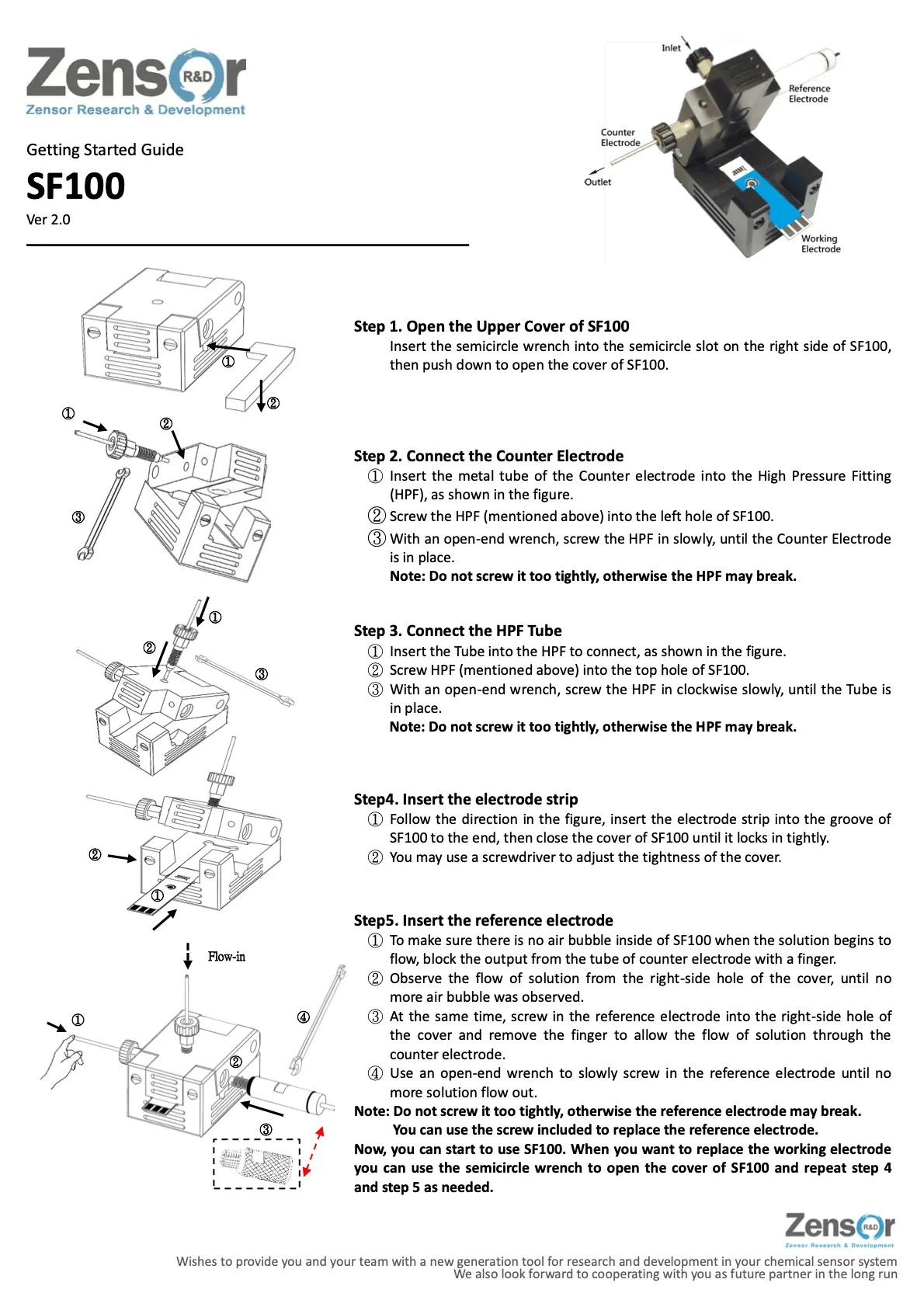

  • Instruction

    Instrument & User guide of Electochemical
                                  Flow cell-Zensor R&D-SF100

Learn More? Get Free Quatation?

Have a chat with Zensor expert
