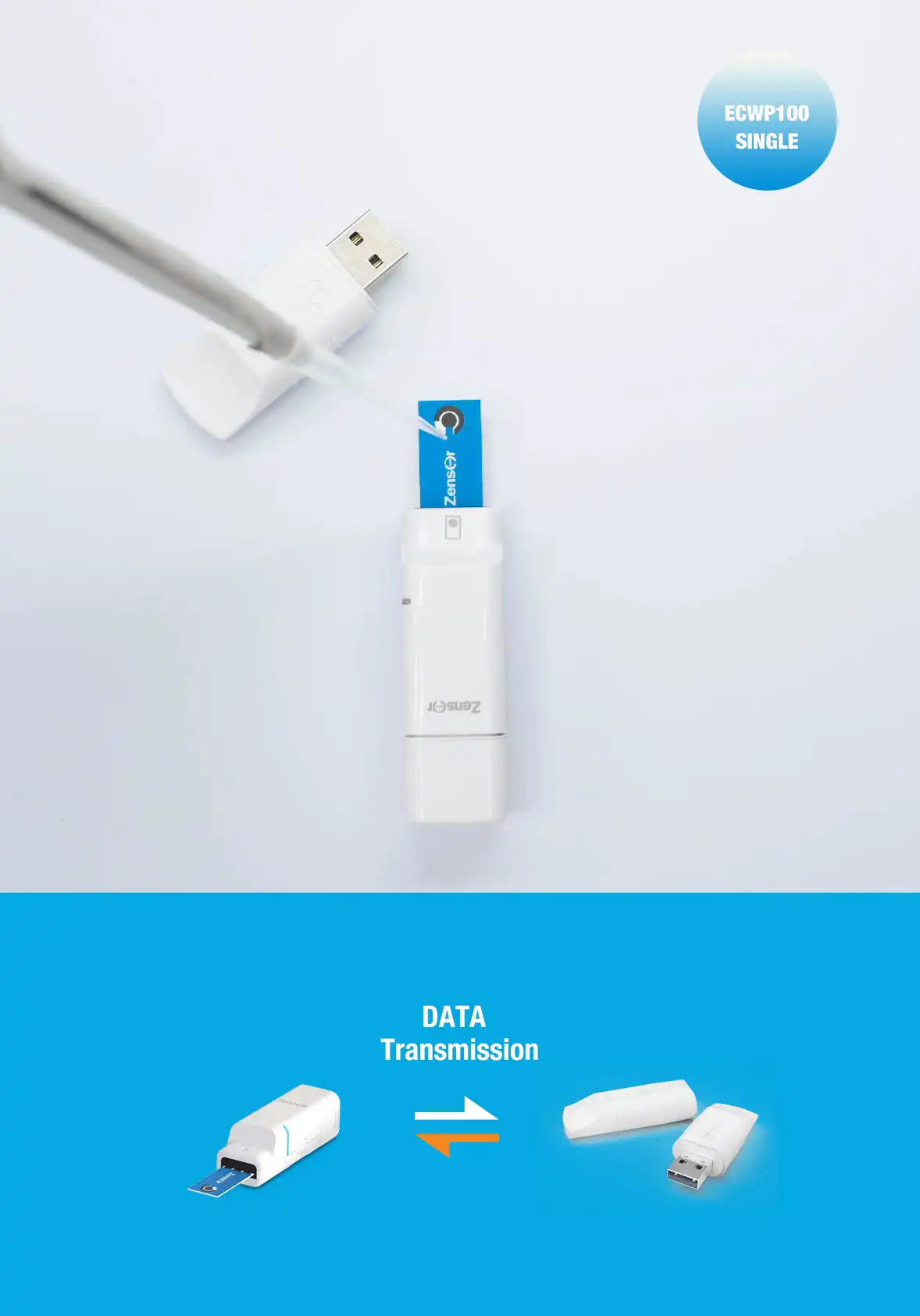

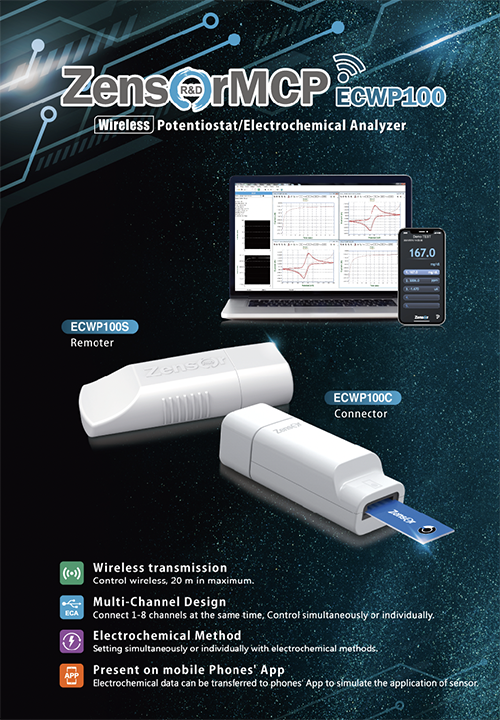

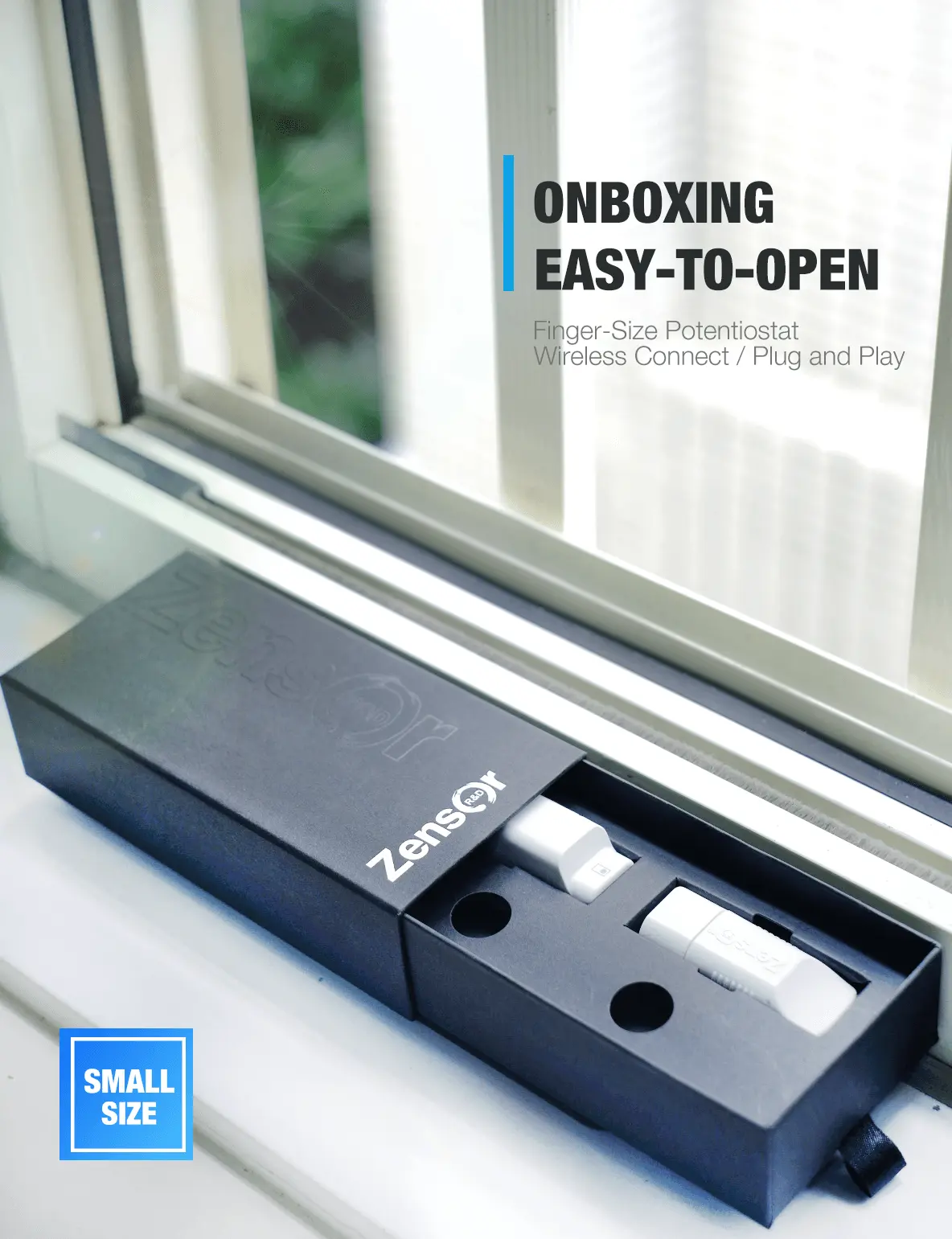

Finger-size potentiostat Wireless connect, plug and play Expanded to 8 Channels Two port type for almost all electrodes

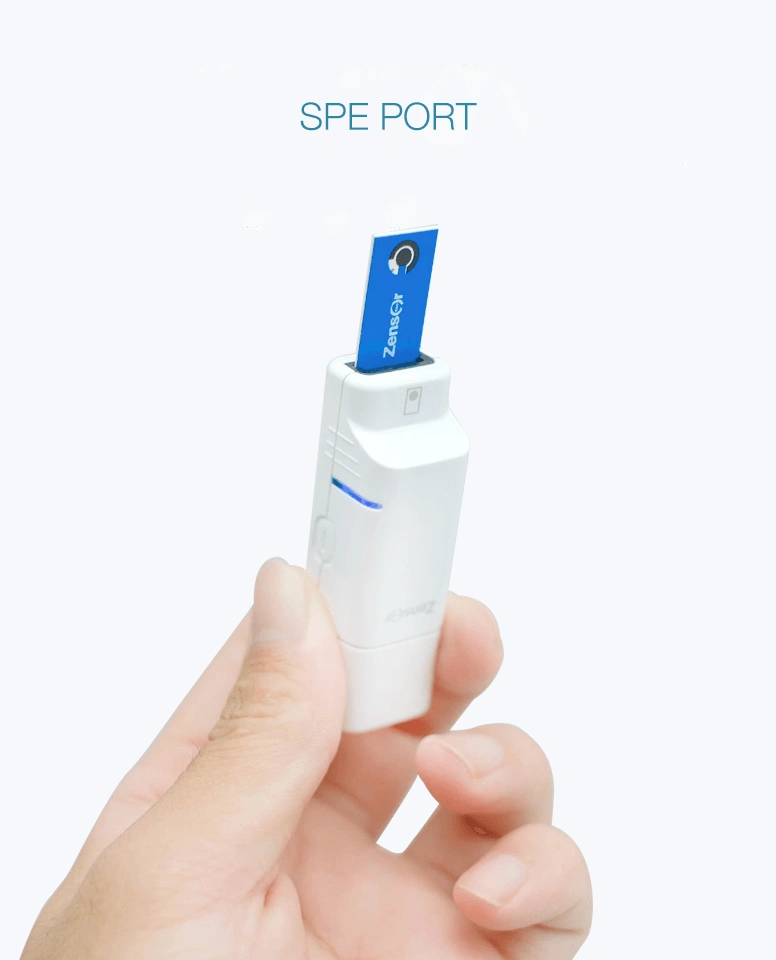

Finger-size potentiostat Wireless connect, plug and play Expanded to 8 Channels Two port type for almost all electrodesFinger-size and wireless connect, plug and play. It can be expanded to 8 Channels. Two port type for three electrodes systems or screen printed electrodes. If you are developing a detecting meter, the ECAS function will give you a completely new development experience with its simulator function.

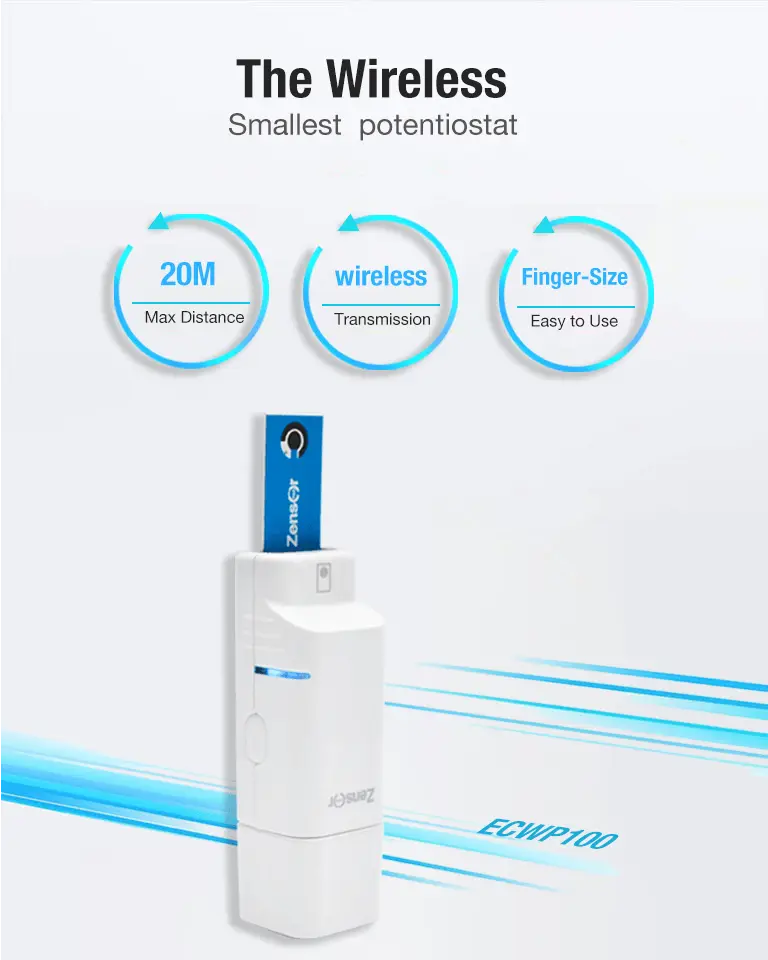

In order to meet the latest academic research trend and product development needs, we combined our product development experience to launch the smallest wireless potentiostat ,which has outstanding accuracy and sensitivity required by sensor development.
You can accurately control the experimental conditions in a very tight space, which can improve the stability of the experimental conditions. It is suitable for experiments that require accurate control of ambient gas concentration, temperature and other conditions
Wireless potentiostat can meet the needs of developing remote sensors, suitable for outdoor, smart farm, smart home, smart medical, IoT sensors, etc.
*When fully charged, it can be used for 3-6 hours and the service time would vary based on the transmission distance.
The foundation of smart living and wearable smart device is sensor development. The wearable sensor can monitor user's behavior and environmental changes, providing big data to smart products operation, allowing which to take direct action in meeting the user's needs. Our wireless research platform can shorten your development time.

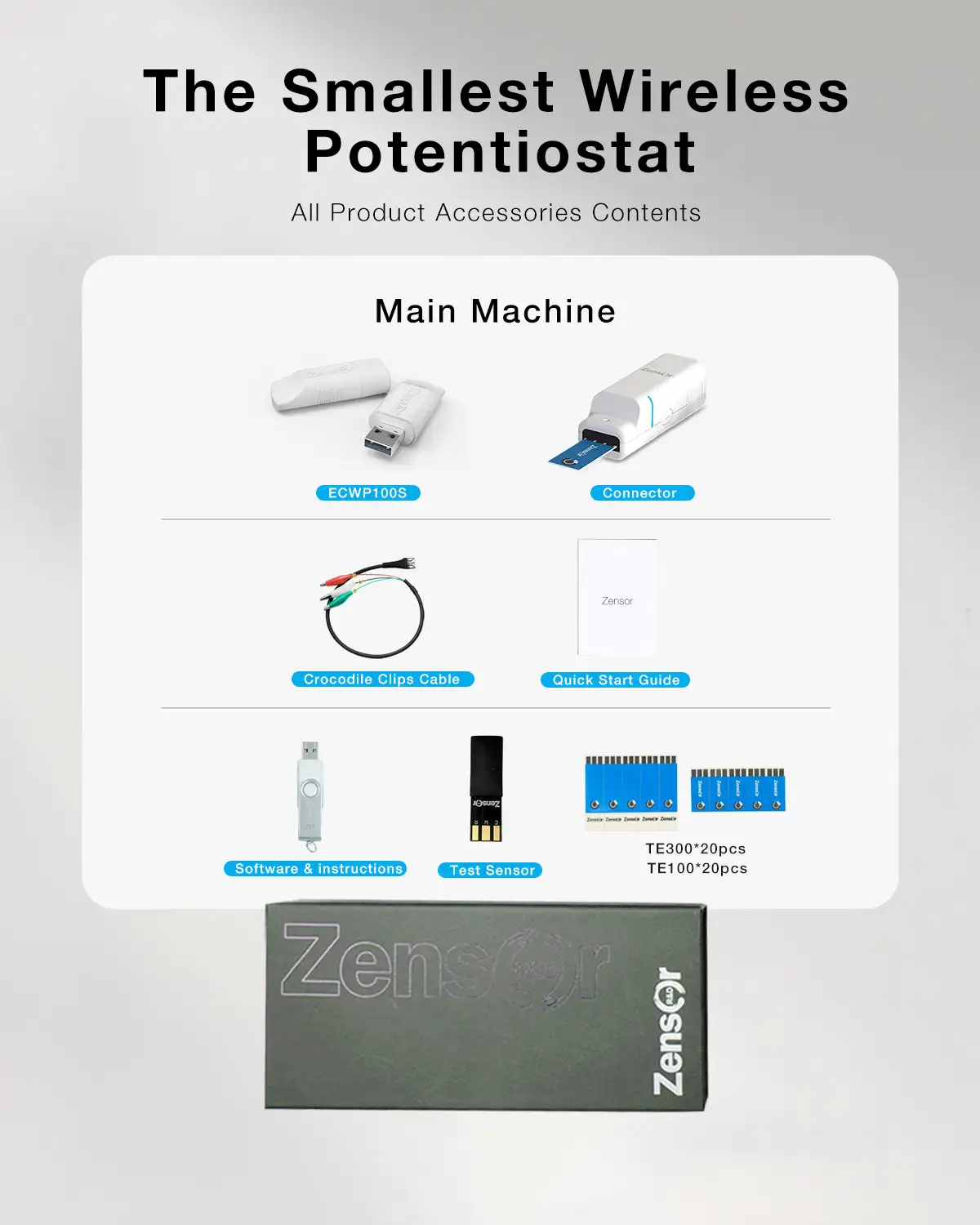

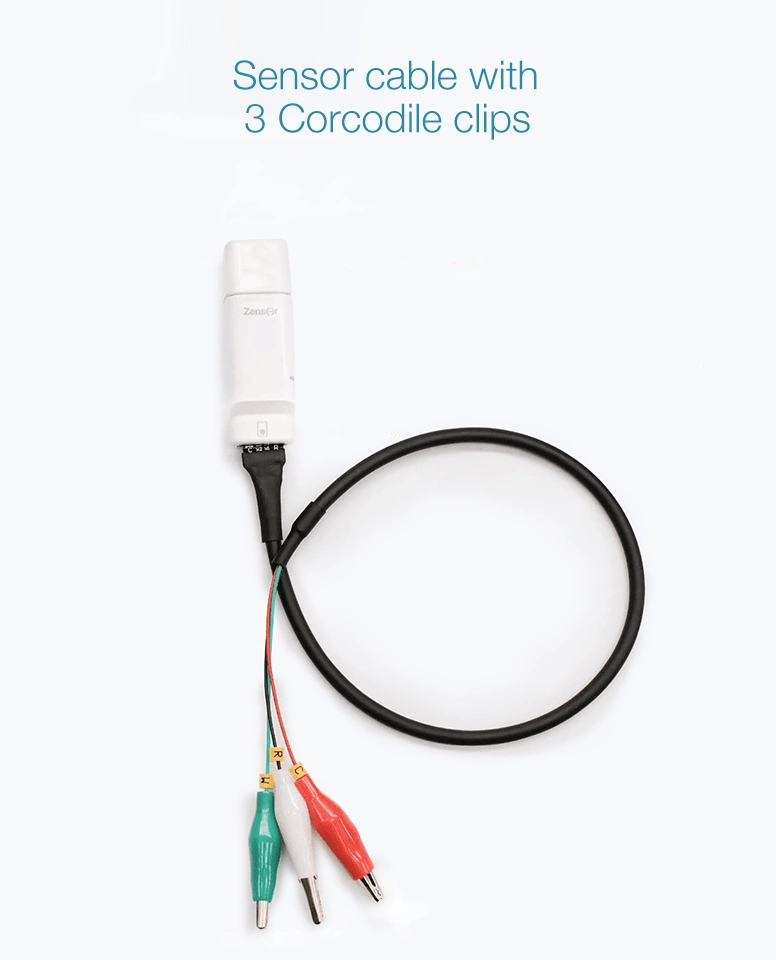

Total Length: about 0.5m and suitable for ECWP100 series
(A) Green - Working Electrodes(WE)
(B) White - Reference Electrodes(RE)
(C) Red - Counter Electrodes(CE)
Did you know that only electrochemists really know what cyclic voltammetry is? Are you still using a bunch of boring charts to report your work ? What do you need to let non-electrochemists have a good understanding of your design and how it works in cross-departmental cooperation and communication, product proposal, application and final report of funding? That is what makes Electrochemical-Analyzer Simulator of Zensor unique. The Electrochemical-Analyzer Simulator of Zensor is an intuitive demo tool for communication. It hides all the complicated experimental steps setting and data processing in the background program and only show the final test results for a live demo that proves your design to be feasible and make it persuasive enough.

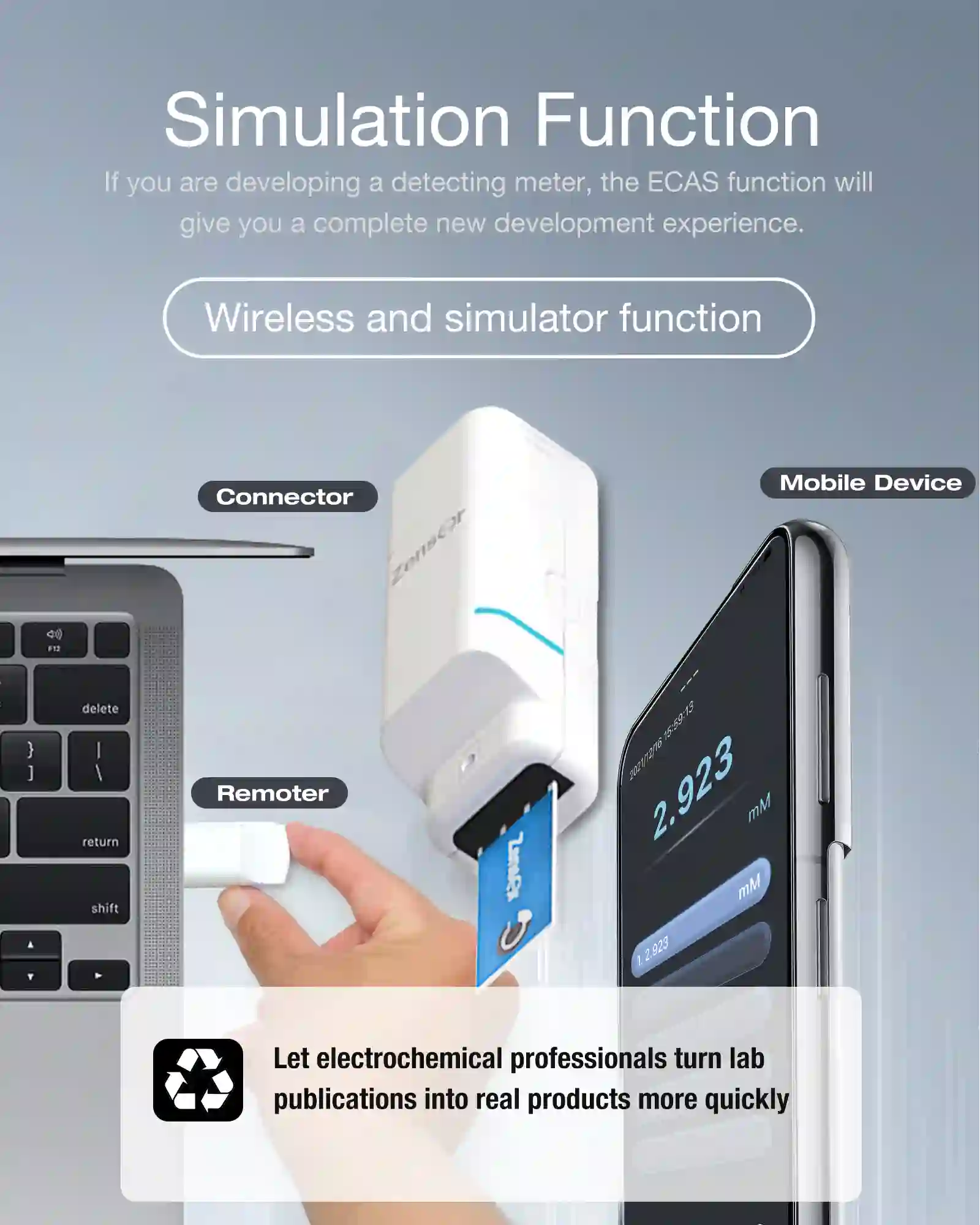

If you are developing a detecting meter, the ECAS function will give you a complete new development experience.

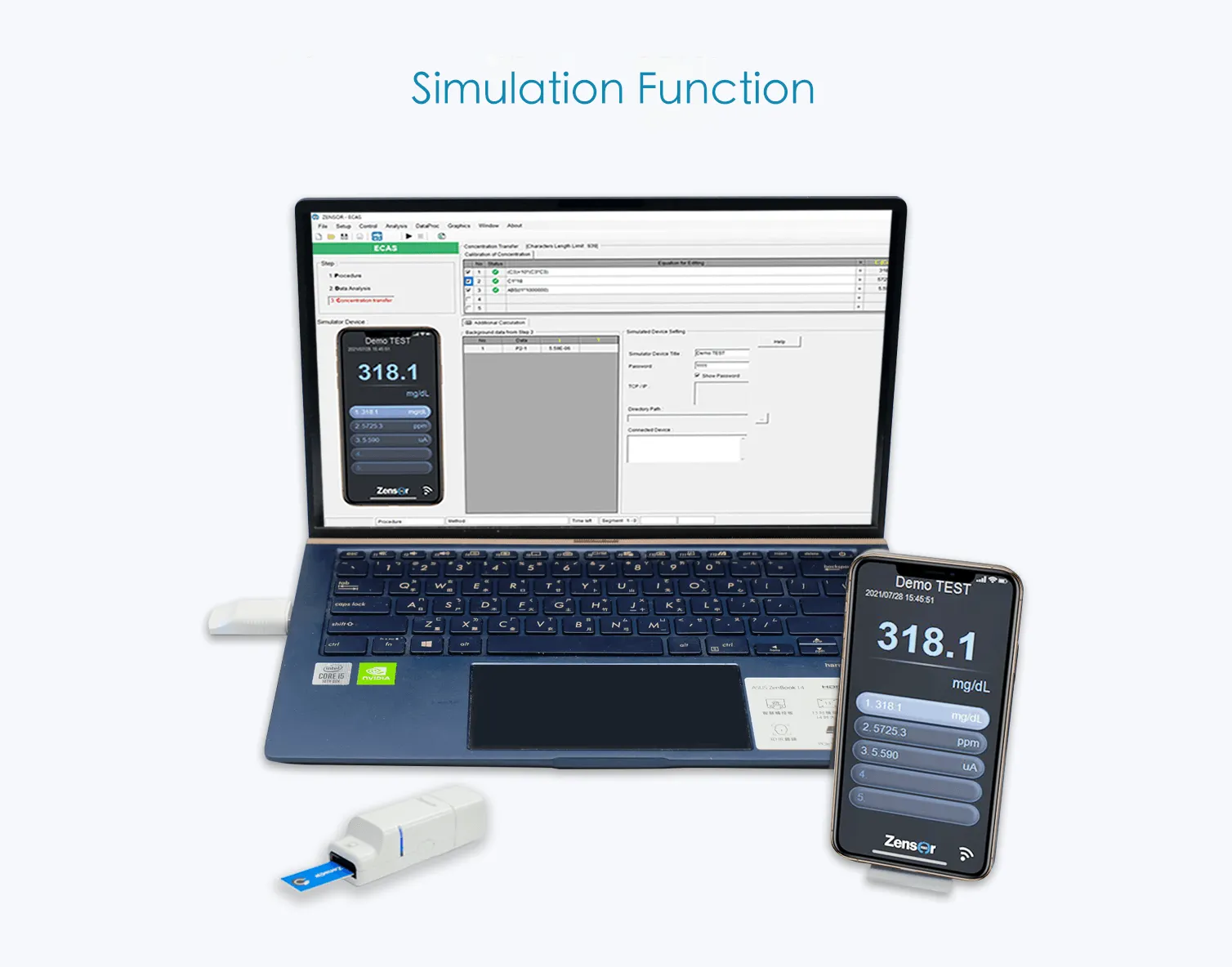

By combining the electrochemical analyzer and data processing software together, we no longer need to wait for the subsequent processing of experimental data to know whether the adjustment of experimental conditions meets expectations. You can see the concentration results directly, which has been processed by pre-programmed correction curve, and you can adjust the states and conditions of the sample to meet the needs of commercial requirements.

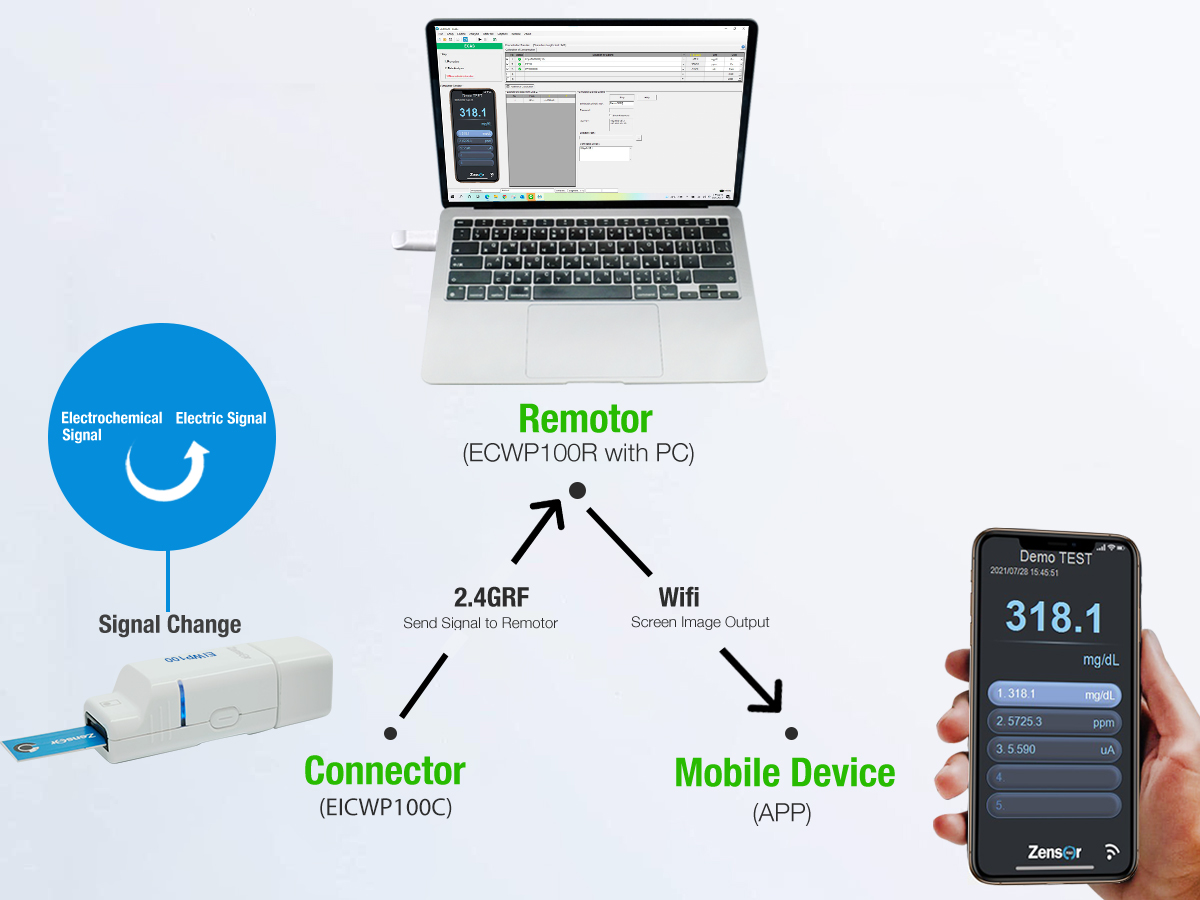

Product designer can preset sampling prompts, test start time setting, electrochemical test process, data selection, data background processing, and concentration conversion steps, etc. in our software and run in the background progress. In addition, with the APP synchronous display function, product designer can complete the prototype easily without the need for customized mold and software. Wireless design and texture of the appearance are closer to the appearance of finished products.
For samples that are difficult to be preserved after sampling, or for test results that need to be obtained immediately after complex data processing at the production line, clinic or outdoor sampling site, our wireless potentiostat with simulator-function is the perfect solution for you.
Let's start sharing
your research on the app!
You can click on the link or scan qrcode to download the app developed by our company
Scan QR-code to Download App
| Electrochemical Methods | (A)Cyclic voltammetry(CV) (B)Amperometry(IT) (C)Open circuit potentiometry(OCP) (D)Differential pulse voltammetry(DPV) (E)Square wave voltammetry(SWV) (F)Linear sweep voltammetry(LSV) |
|---|---|

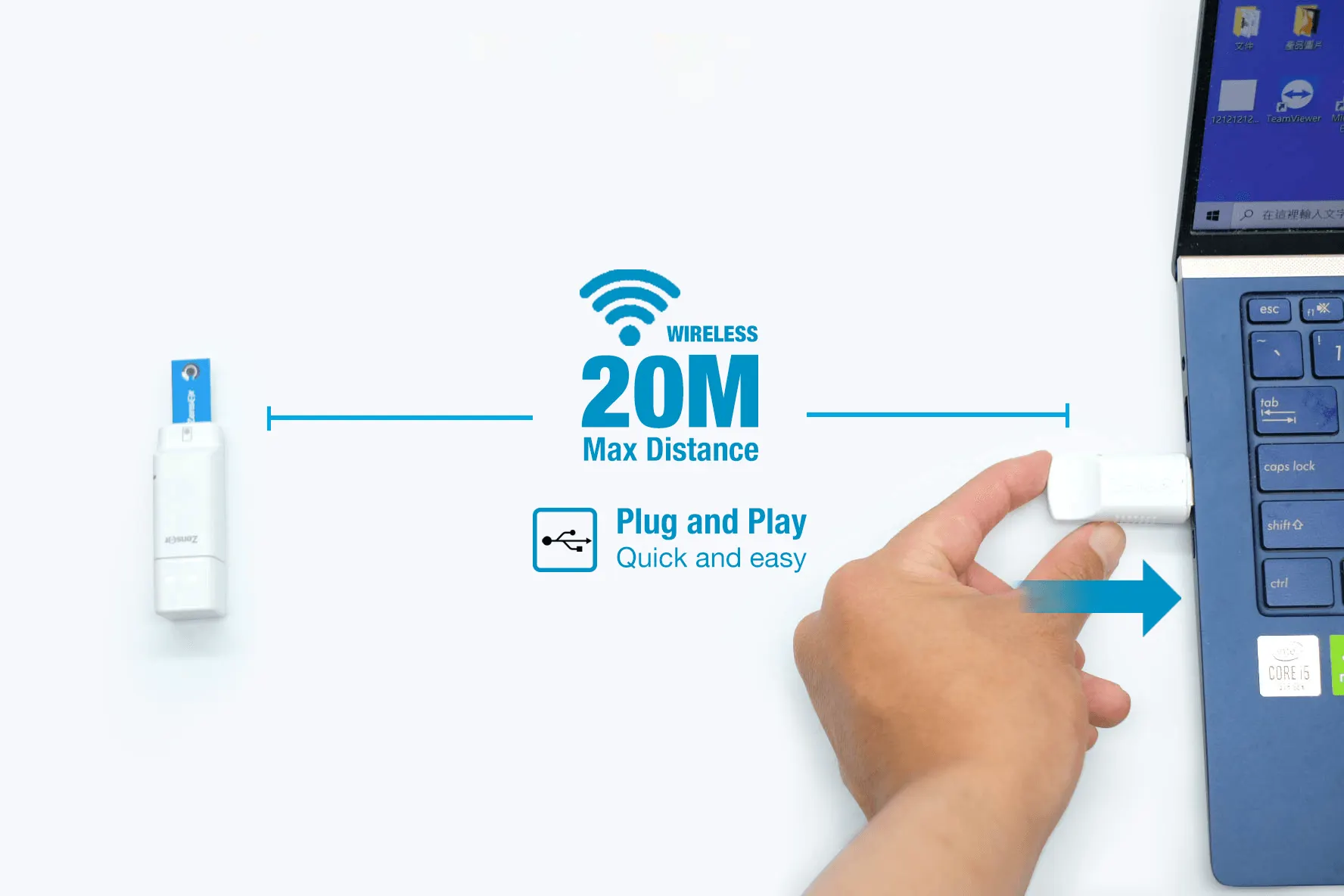

| Range | (A)Voltage range scan :+2~-2(v), OCP voltage range:+1800mV~-1800mV (B)Current range:1x10-3 ~1x10 -9 (A) (C)Current resolution:0.5% of current range (D)Maximum wireless distance:20m |
| Operation system | window 7 and / or above |
| Communication | USB1.1 and 2.4G RF |
| Power | (A)Remoter input: DC 5V,2A Connector input:DC 5V,0.5A (B)Battery life:1~6 Hr |
| Dimension | Remoter: 57.5 x 22.5 x 14.5mm Connector: 61 x 20 x 19.5mm |
| Weight | Remoter: ~150g Connector:~25g |
 |  |  |  |  |
|---|---|---|---|---|
| ECWP100single | ECWP100plus | MCP100 | ECAS100 | ACIP100 |
| wireless | Wireless | USB powered | USB and battery powered + Offline use | USB and battery powered + Offline use |
| Simulation | Simulation | - | Simulation（editable chip）Note.1 | Simulation（editable chip）Note.1 |
| SPE availabel | SPE availabel | SPE availabel | SPE availabel | SPE availabel |
| 3 clips connector available | 3 clips connector available | 3 clips connector available | 3 clips connector available | 3 clips connector available |
| Single-channel | Maximum 8 channels | Channels 2-8 are available | Single-channel | Single-channel |
| Need PC | Need PC | Need PC | 5.0 touch panel | 5.0 touch panel |
| CV/LSV/SWV/DPV/IT/OCP | CV/LSV/SWV/DPV/IT/OCP | CV/IT/OCP | CV/LSV/SWV/DPV/IT/OCP | CV/IT/OCP |
| - | - | - | - | ACIP |
| - | - | - | - | IMPT |
| - | - | - | - | IMPE |
| +2~-2V | +2~-2V | +2~-2V | +2~-2V | +2~-2V |
| 10-3~10-9A | 10-3~10-9A | 10-2~10-10A | 10-2~10-10A | 10-2~10-10A |
| Detail-Info | Detail-Info | Detail-Info | Detail-Info | Detail-Info |
Note1：Simulation function-The test steps can be burned into a replaceable smart chip, so a large number of test samples can be tested offline, and the result can be read directly on the panel, which would simulate the process of product development.
