Hello
Welcome to Zensor

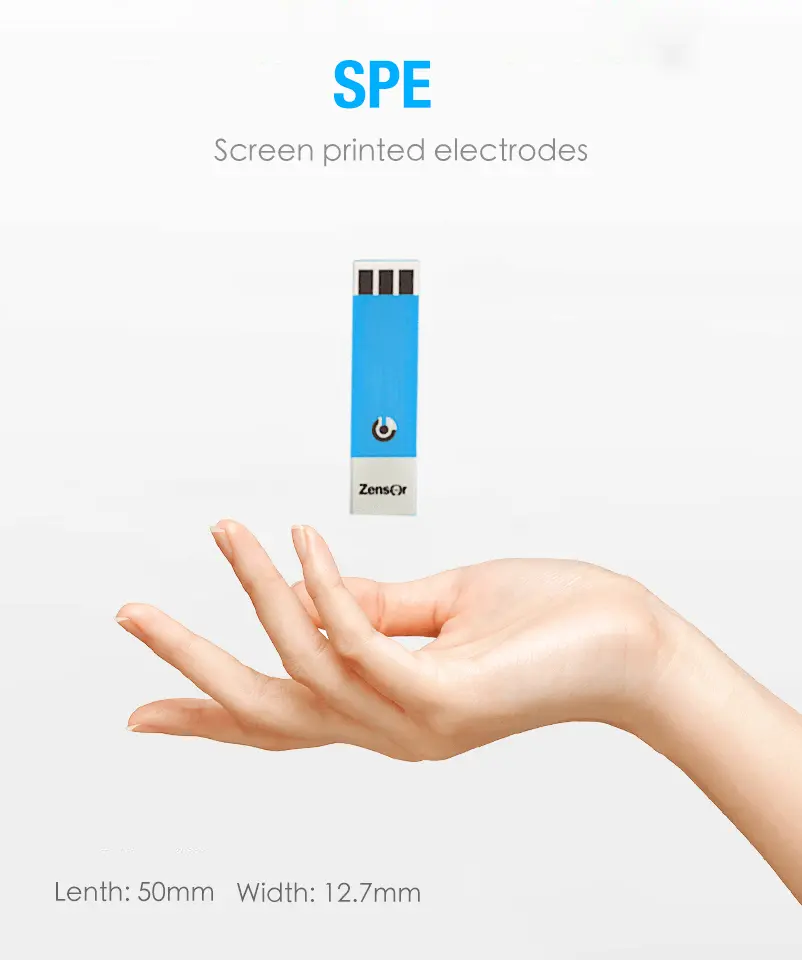

Screen printed electrodes /Interdigitated electrodes/SPE

Screen printed electrodes/
Interdigitated electrodes

  • No pretreatment & maintenance free
  • Excellent electrochemical performance
  • Small lot-to-lot difference
  • Various materials & sizes

Screen printed electrodes /Interdigitated electrodes/SPE

Screen printed electrodes/
Interdigitated electrodes

  • No pretreatment & maintenance free
  • Excellent electrochemical performance
  • Small lot-to-lot difference
  • Various materials & sizes

  • No pretreatment & maintenance free

    The traditional need-to-be-polished electrode want a time-consuming polishing process, or even a complex pretreatment process.Screen printed and Interdigitated electrodes provide you with a "Ready to be Used" solution to effectively save your experiment time.

     ready for use & disposable electrochmical
                                Screen printed electrodes & Interdigitated
                                electrodes-Zensor R&D-SPE
  • Excellent electrochemical performance & Small lot-to-lot difference

    Zensor's screen printed electrodes are manufactured by our exquisite production technolog ,which batch difference is less than 5% and can be used continuously for more than 24h *. The most important thing is that the electrochemical performance is equally excellent, providing you with the disposable and lab-analysis-level sensor.

    * In a specific solution and experimental environment.


                                CV(cyclic voltammetry) in (K3FeCN6/Ferricyanide)
                                with electrochmical Screen printed electrodes &
                                Interdigitated electrodes-Zensor R&D-SPE

    The images above are CVs of GC,SPE, Interdigitated electrodes in 3mM Ferricyanide with 0.1 M KCl,pH=7

  • Why using Screen printed electrodes(SPE) can accelerate research?

    Just need a few microliters of sample

    Screen printed electrodes just require a few microliters to complete the test. SPE are a perfect solution for electrochemical tests on precious and expensive samples

    just need a few microliters of sample
                                    electrochmical Screen printed electrodes &
                                    Interdigitated electrodes-Zensor R&D-SPE

    Suitable for the in-situ tests

    SPE can be used in conjunction with IR,UV,Raman spectrum, NMR, TEM, microscopy and other detection equipments
    and other detection equipments

    in-situ test with IR,UV,Raman spectrum,
                                    NMR, TEM, microscopy electrochmical Screen
                                    printed electrodes & Interdigitated
                                    electrodes-Zensor R&D-SPE
  • With the Electrochemical Flow Cell, easy for real-time testing

    With Flow Cell, easy for real-time testing
                                electrochmical Screen printed electrodes &
                                Interdigitated electrodes-Zensor R&D-SPE

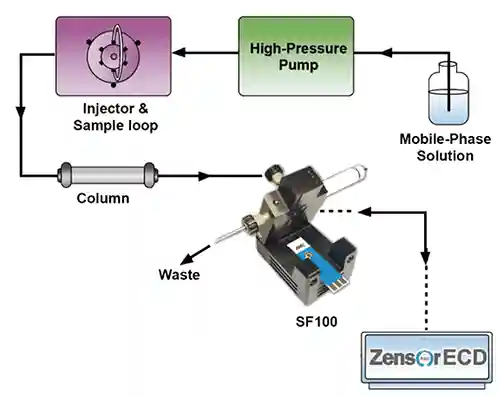

    Image:SPE / EFC combined with HPLC apply in Real-time testing

  • Effectively shorten the experiment time and make the data more reliable

    Screen printed electrodes are designed to be disposable, so you do not have to worry about electrode pretreatment and maintenance procedures.You can used SPE as you like and don't worry about electrode broken.In addition, in the same experimental environment, multiple electrodes can be modified and tested at the same time.That can complete repeatability tests within a short time ,and get more reliable data

    no pretreatment & disposable electrochmical
                                Screen printed electrodes & Interdigitated
                                electrodes-Zensor R&D-SPE

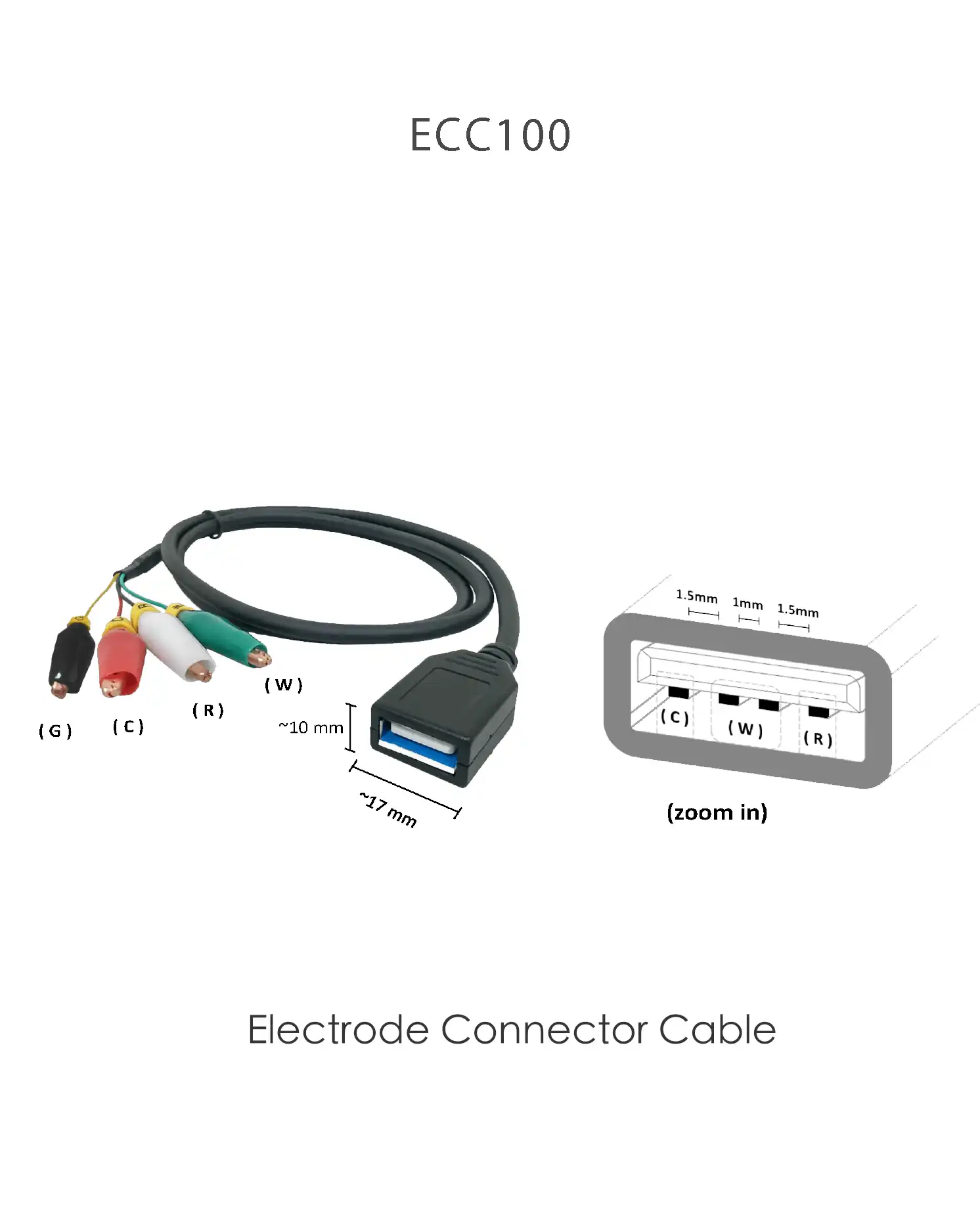

  • Connector cable

    Crocodile clips can be converted to screen printed electrode connector easily with ECC100. High efficiency transmission line and precise metal port, provide you nearly zero signal loss. Wire length: about 1m. ECC100 is suitable for all ZensorSPE.

    Crocodile Clips
    • (A) Green - Working Electrodes(WE)
    • (B) White - eference Electrodes(RE)
    • (C) Red - Counter Electrodes(CE)
    • (D) Black - Ground(GND)

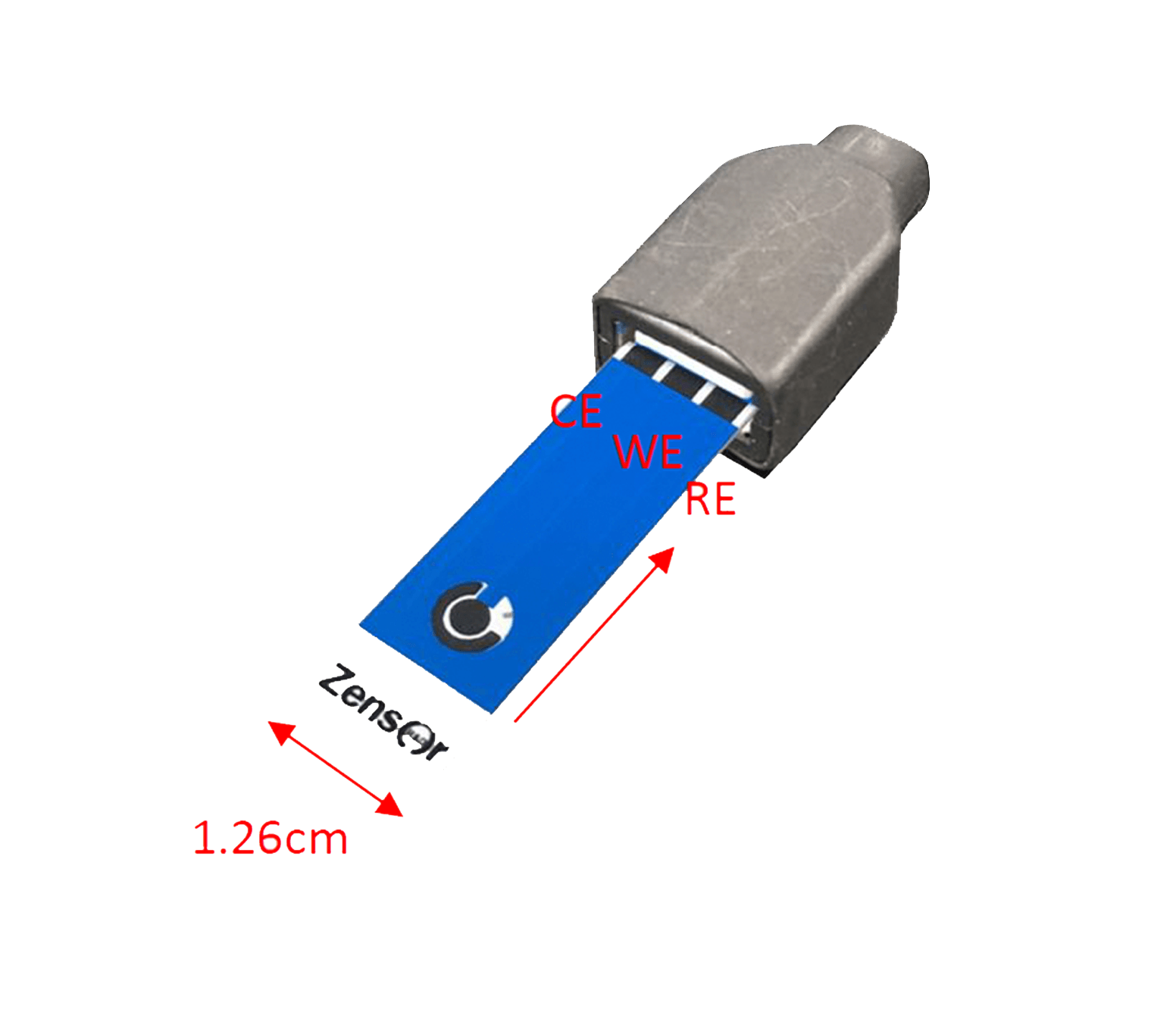

    Connector Direction
    • (A) Left - Counter Electrodes(CE)
    • (B) Middle - Working Electrodes(WE)
    • (C) Right - Reference Electrodes(RE)
    • (C) Right - Reference Electrodes(RE)

This is first time to use SPE, you may consider our regular models first.

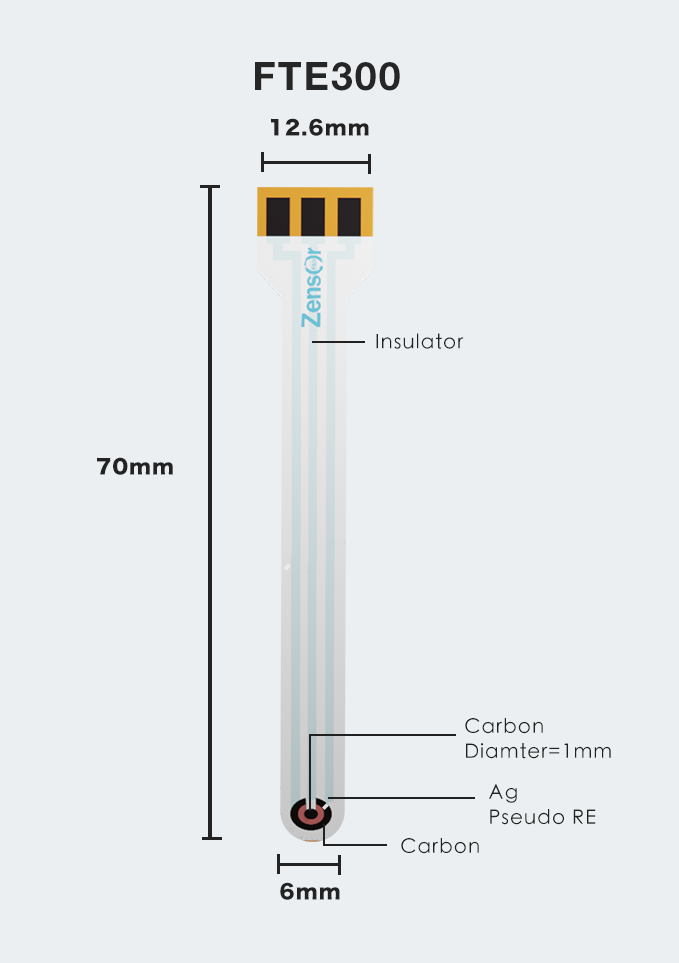

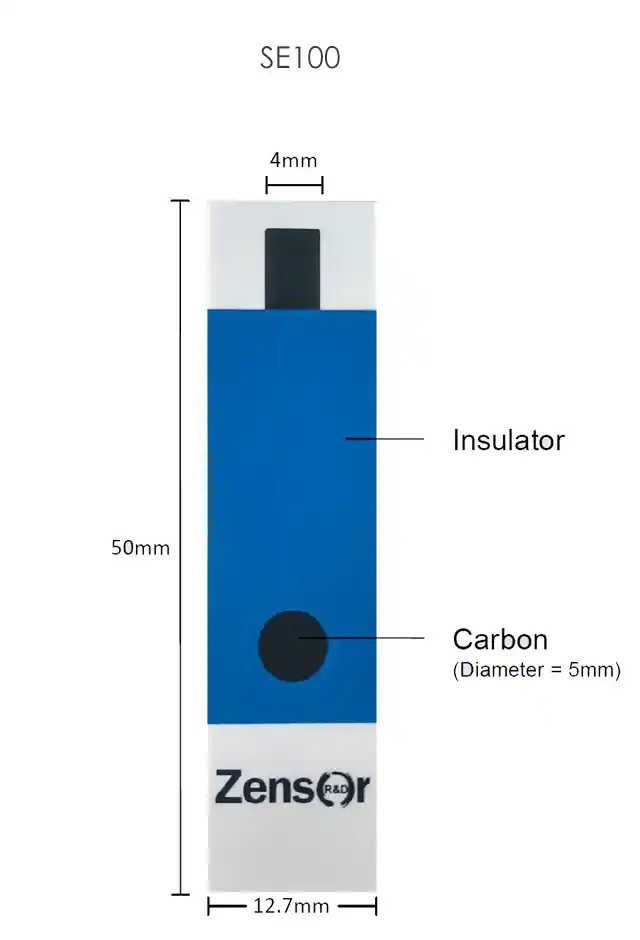

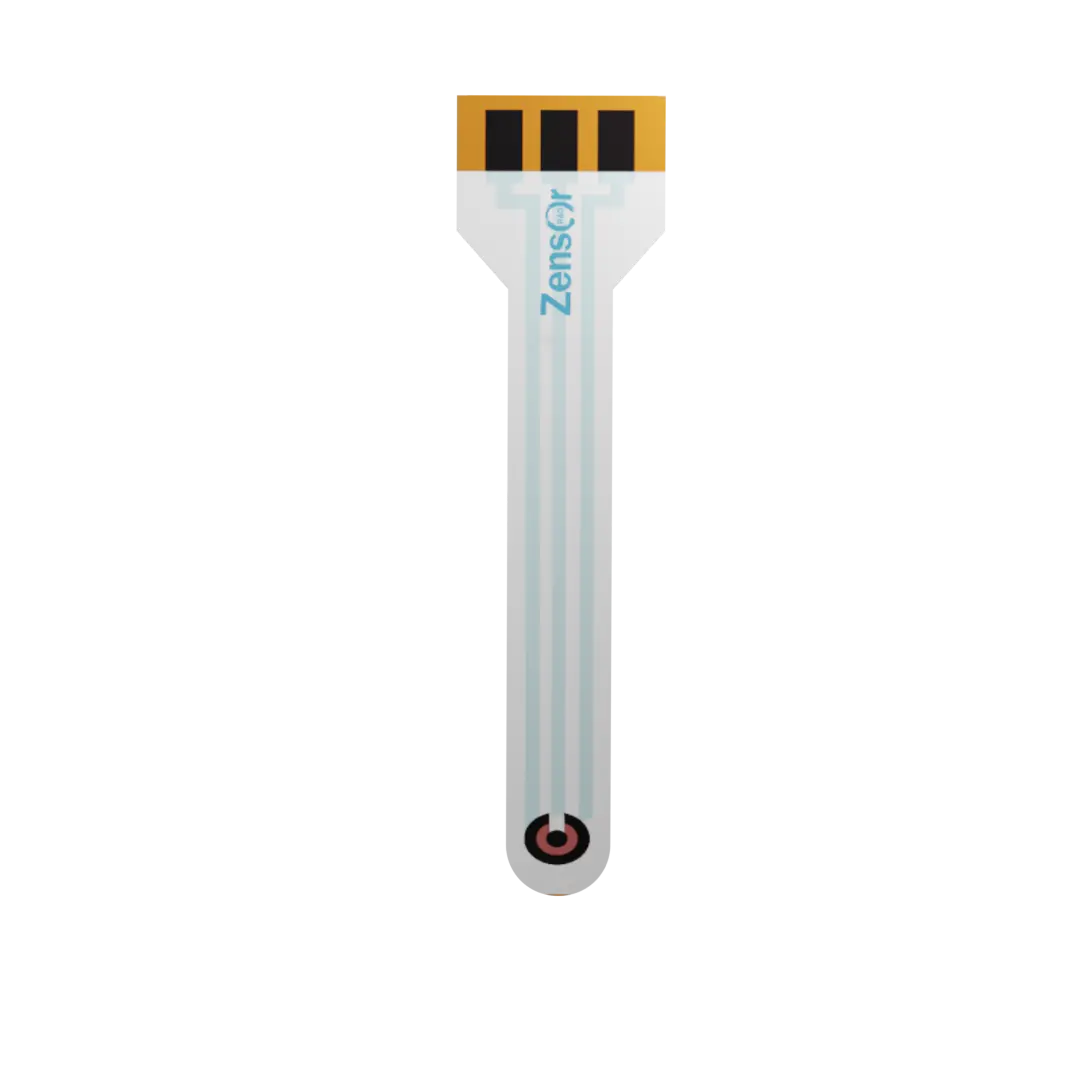

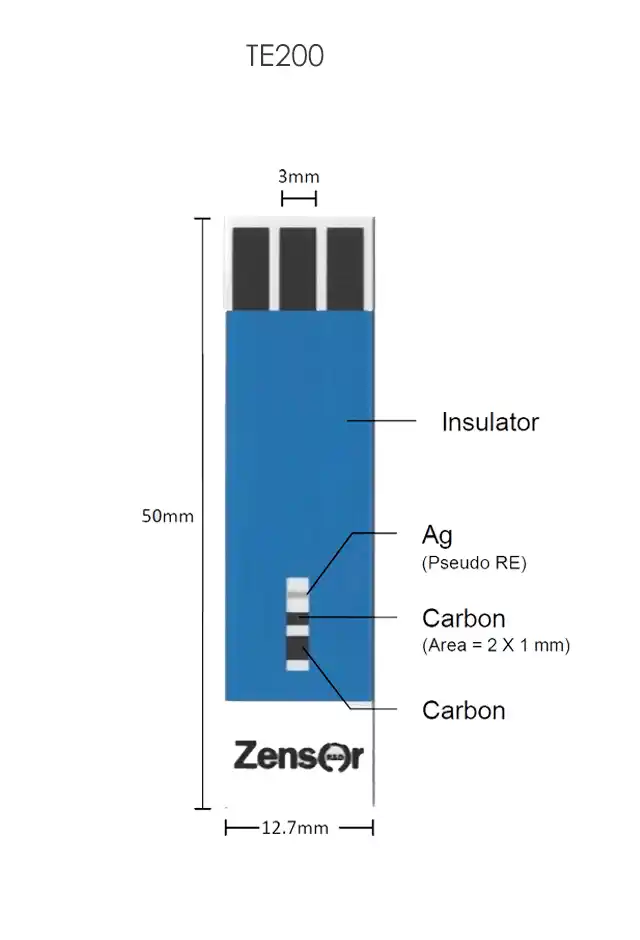

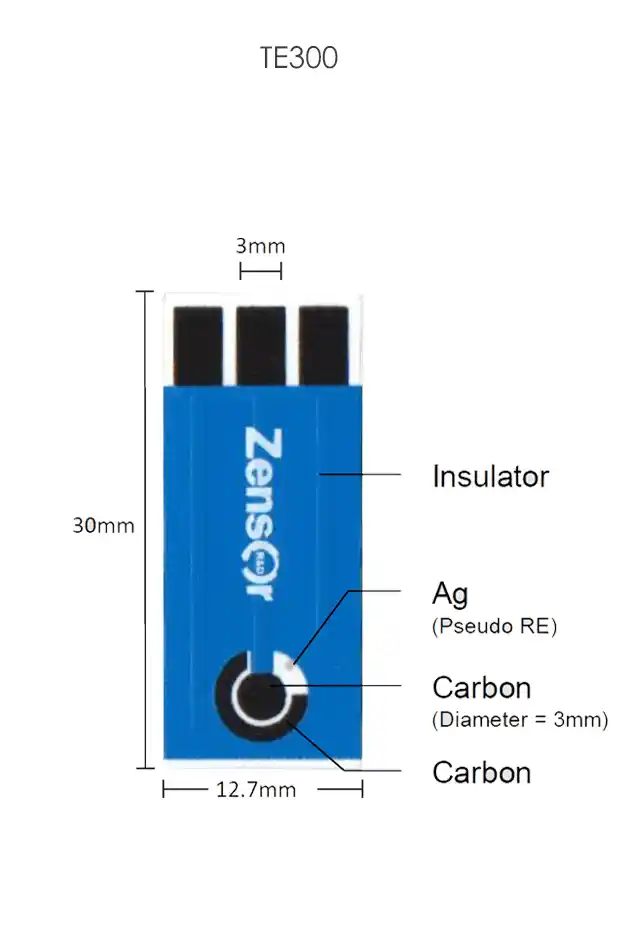

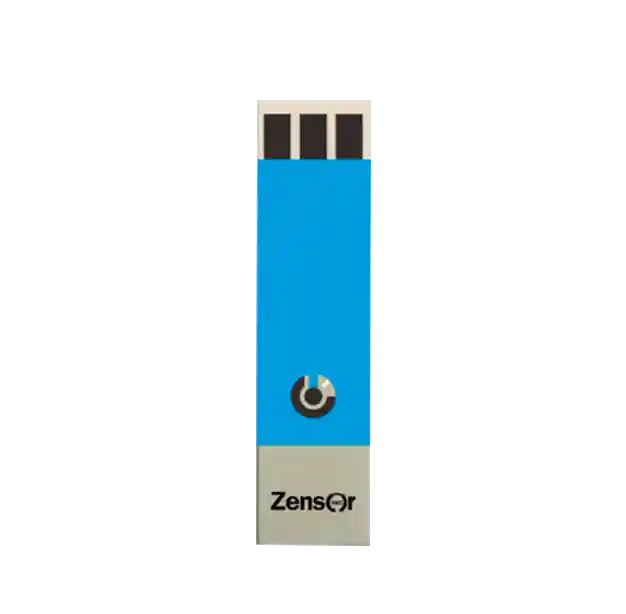

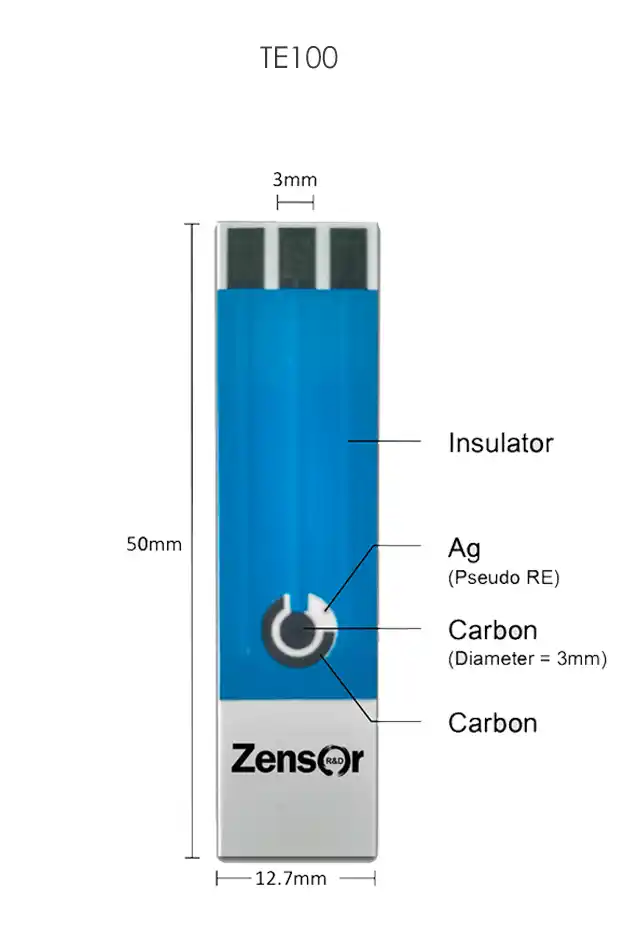

Screen printed electrodes/ SPE

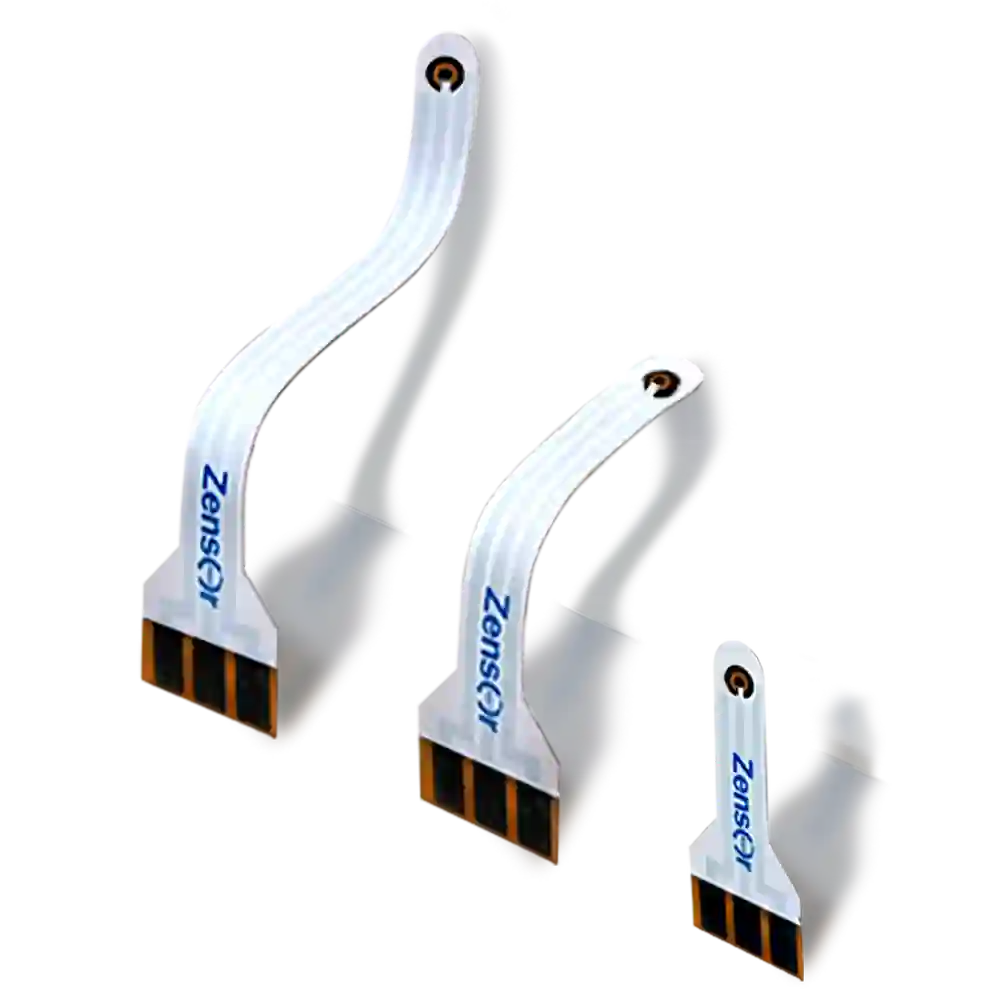

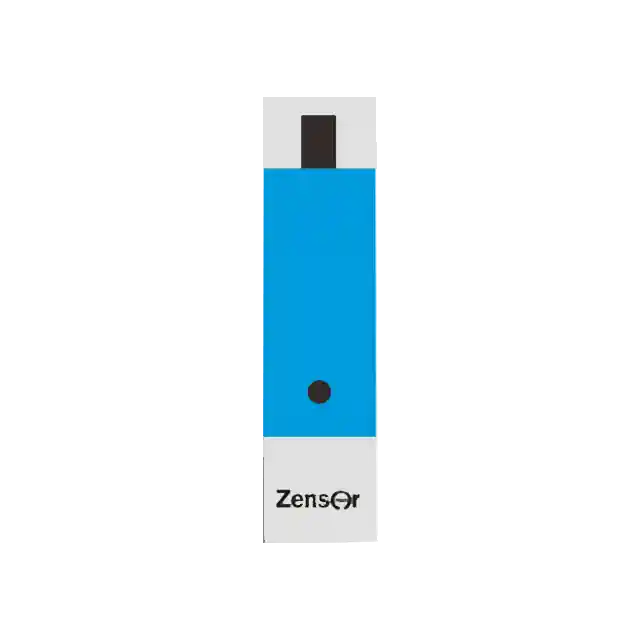

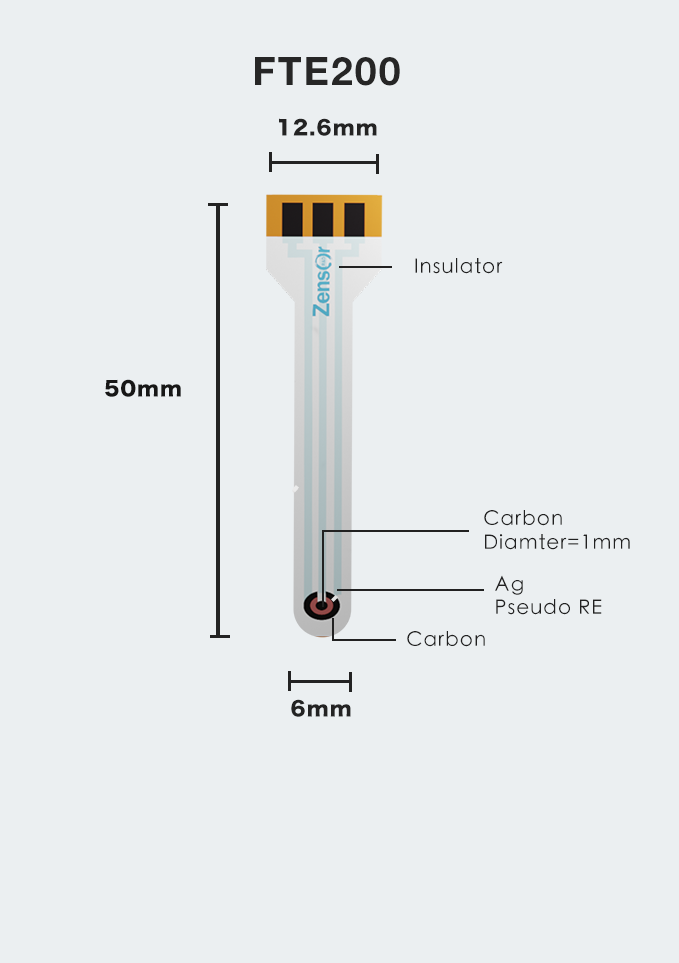

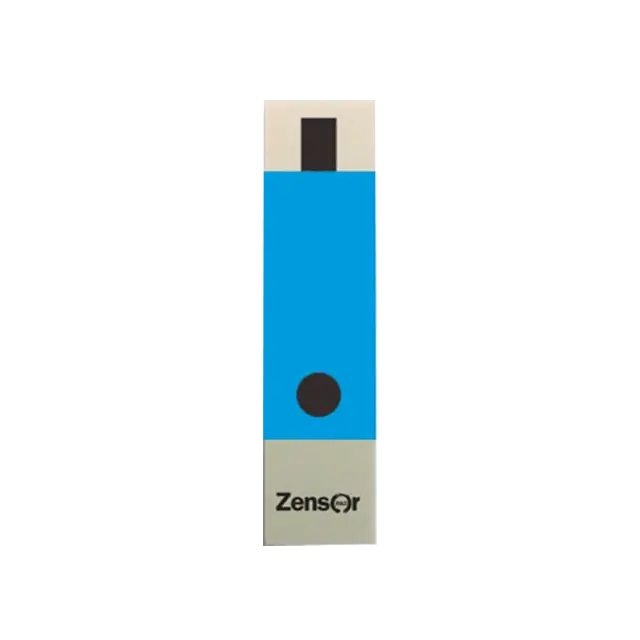

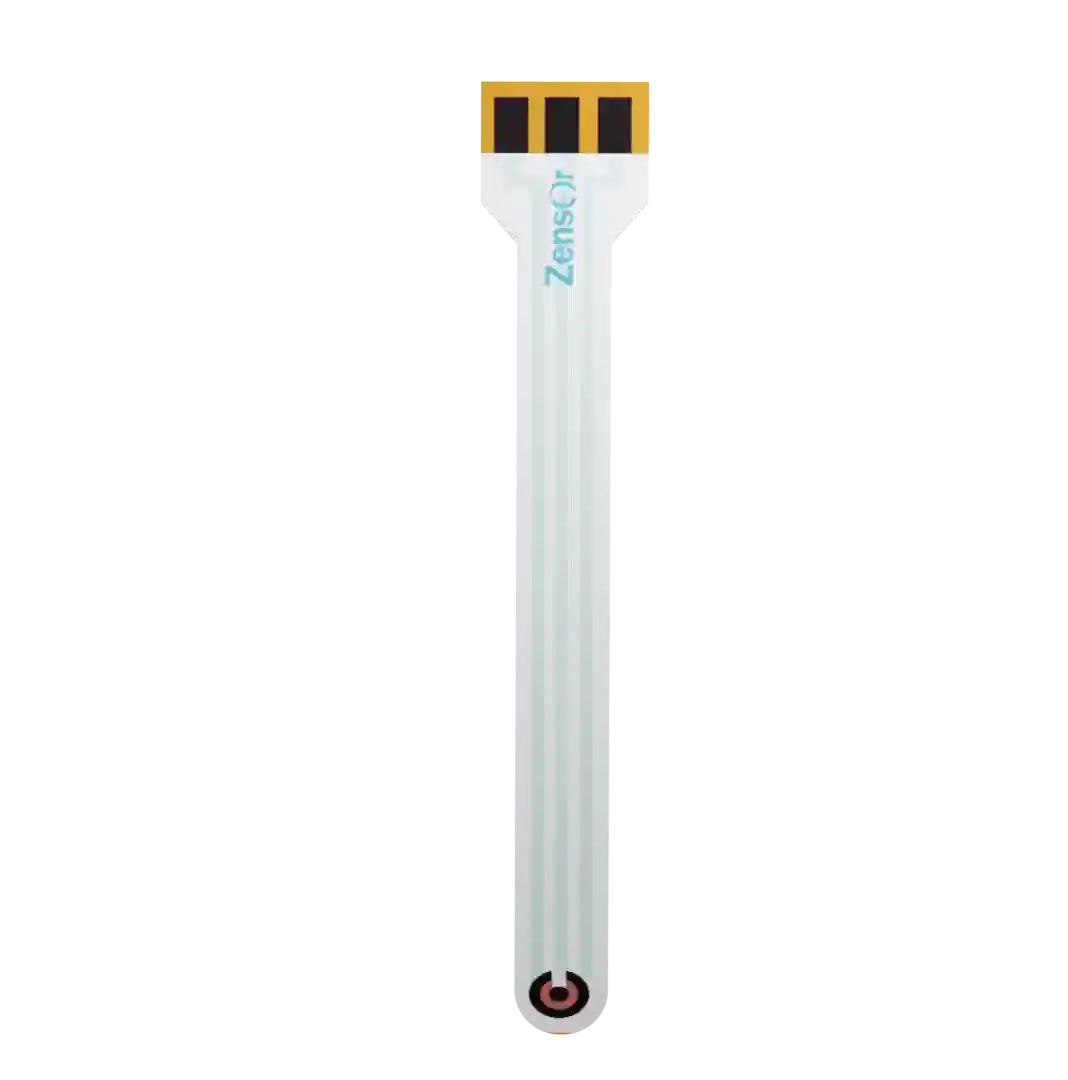

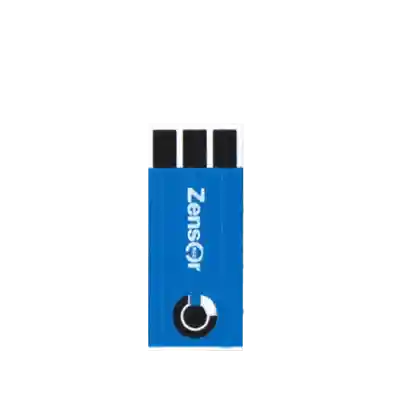

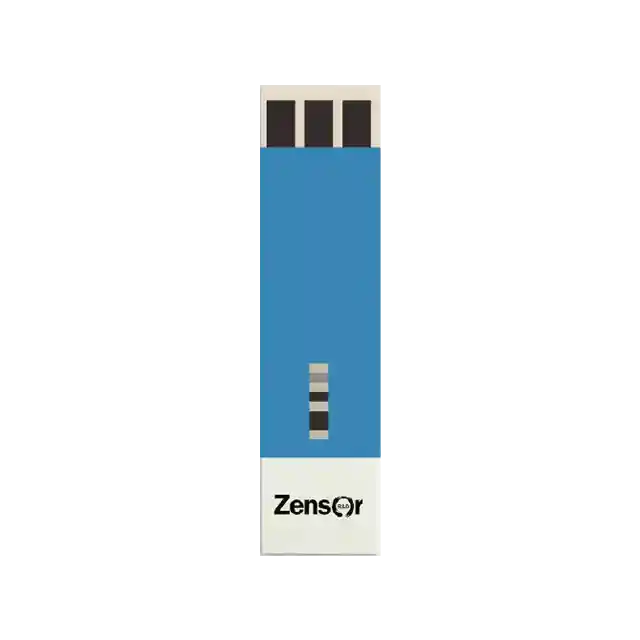

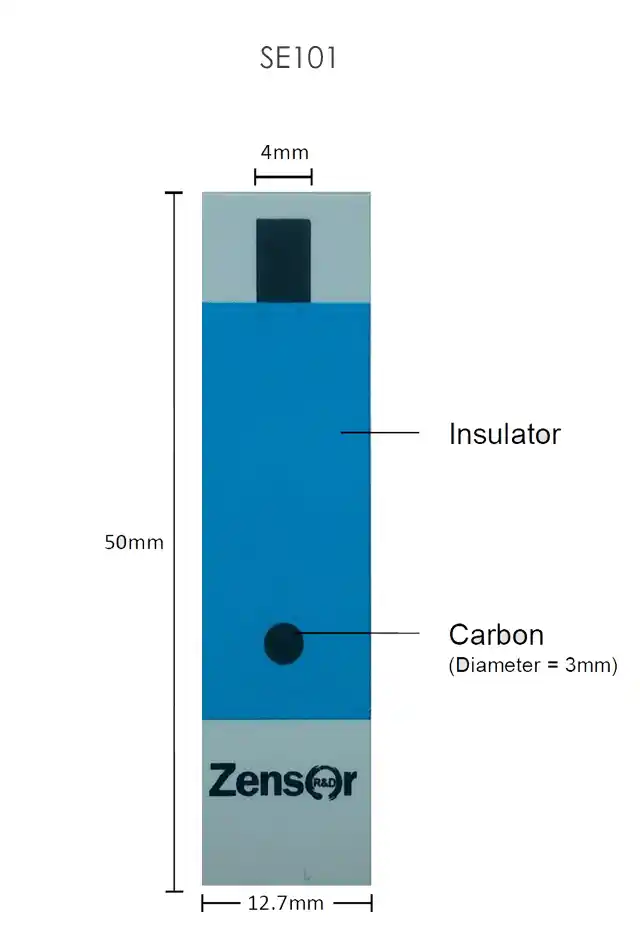

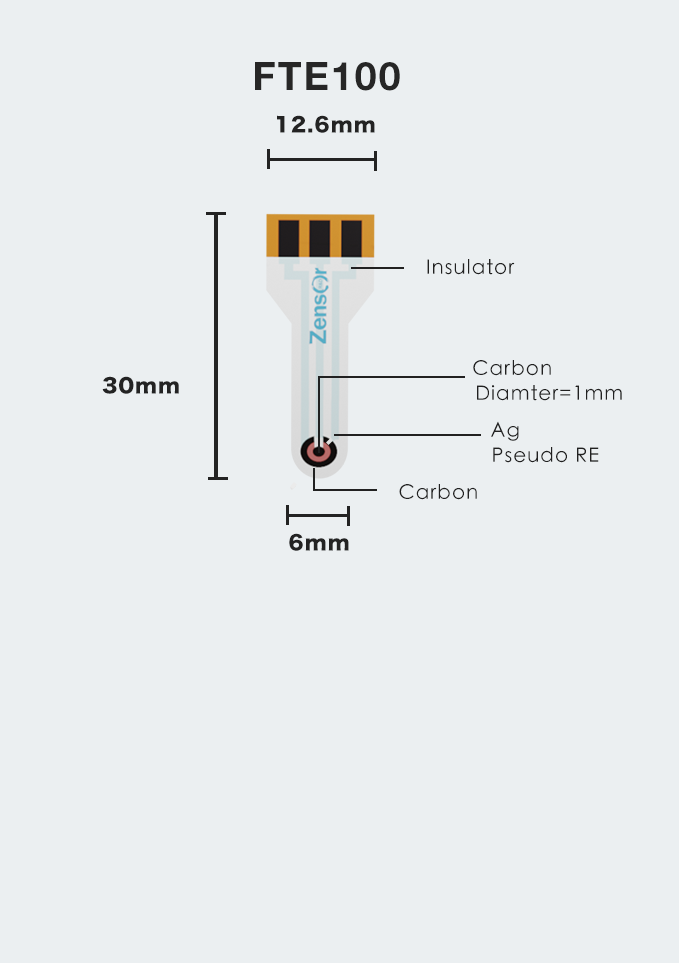

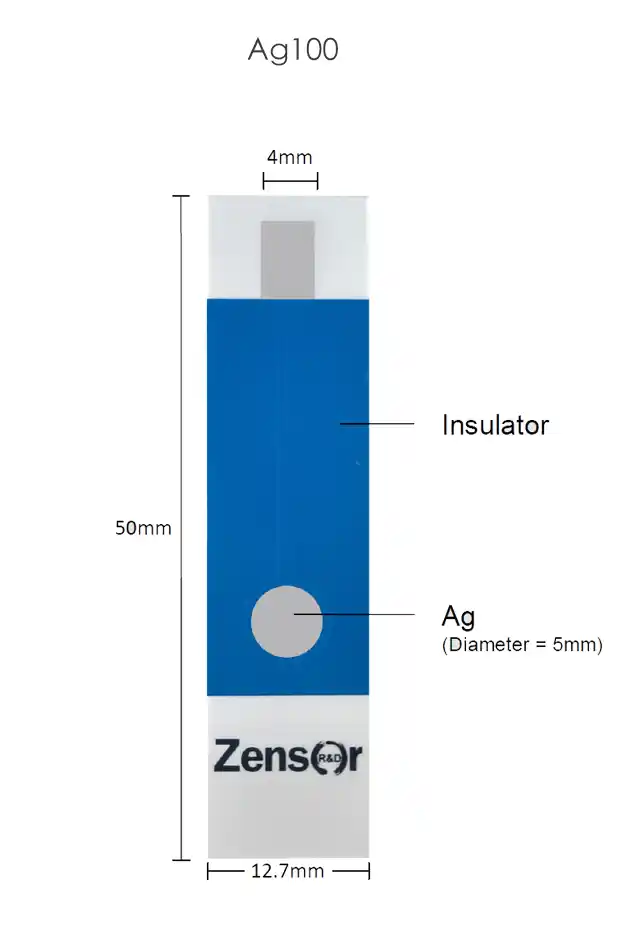

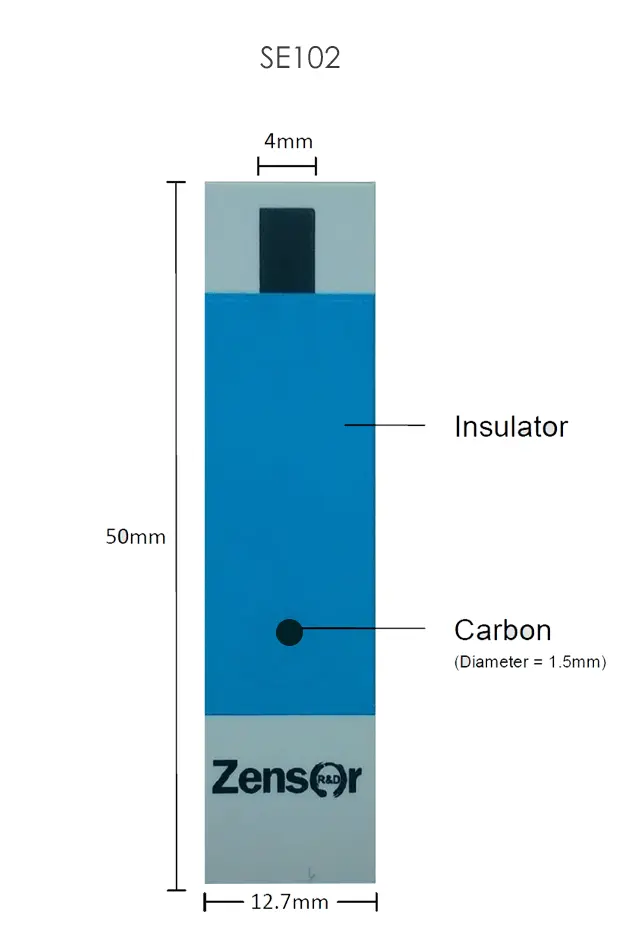

ModelTE100TE200TE300FTE100FTE200FTE300SE100SE101SE102Ag100
Electrode system3 electrodes3 electrodes3 electrodes3 electrodes3 electrodes3 electrodessingle electrodesingle electrodesingle electrodesingle electrode
Base platePPPPPPPIPIPIPPPPPPPP
Size of base plate(mm*mm12.6*5012.6*5012.6*3012.6/6*3012.6/6*5012.6/6*7012.6*5012.6*5012.6*5012.6*50
Material of WECarbonCarbonCarbonCarbonCarbonCarbonCarbonCarbonCarbonAg
Size of WER=3mm2*1mmR=3mmR=0.5mmR=0.5mmR=0.5mmR=5mmR=3mmR=1.5mmR=5mm
Area of WE (mm2)7.12.07.10.790.790.7919.67.11.819.6
Material of REAg PseudoAg PseudoAg PseudoAg PseudoAg PseudoAg Pseudo----
Area of RE(mm2)0.152.01.00.20.20.2----
Material of CECarbonCarbonCarbonCarbonCarbonCarbon----
Area of CE (mm2)5.04.05.03.053.053.05----

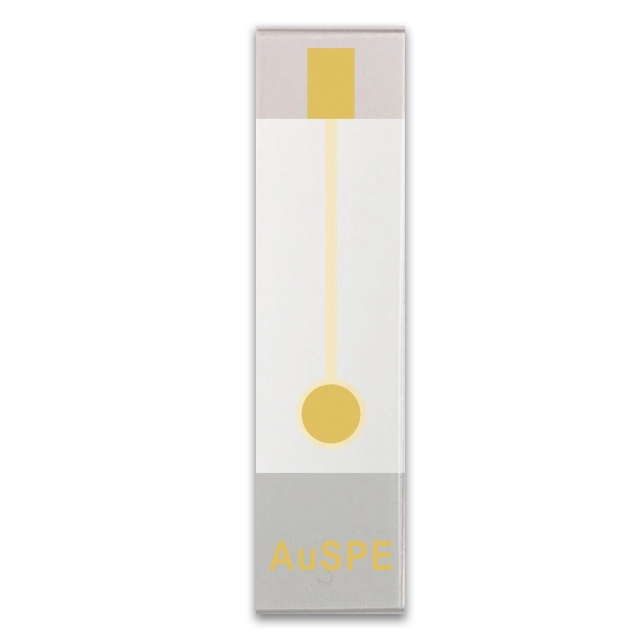

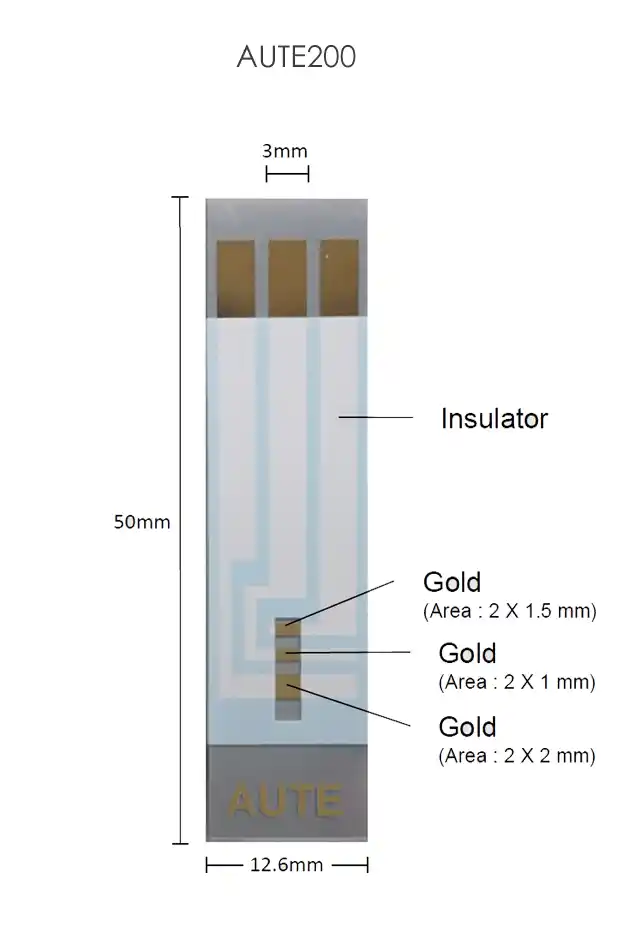

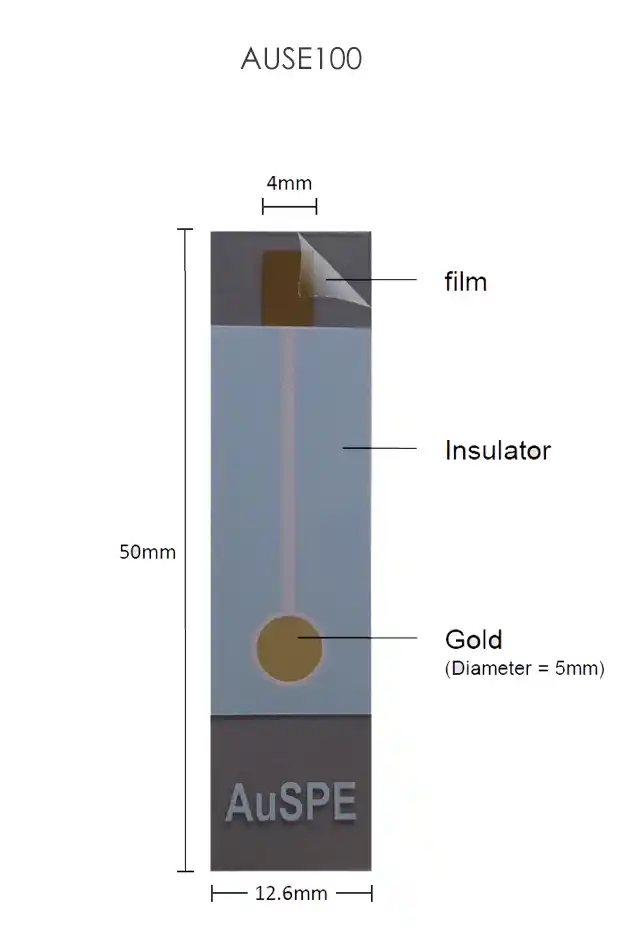

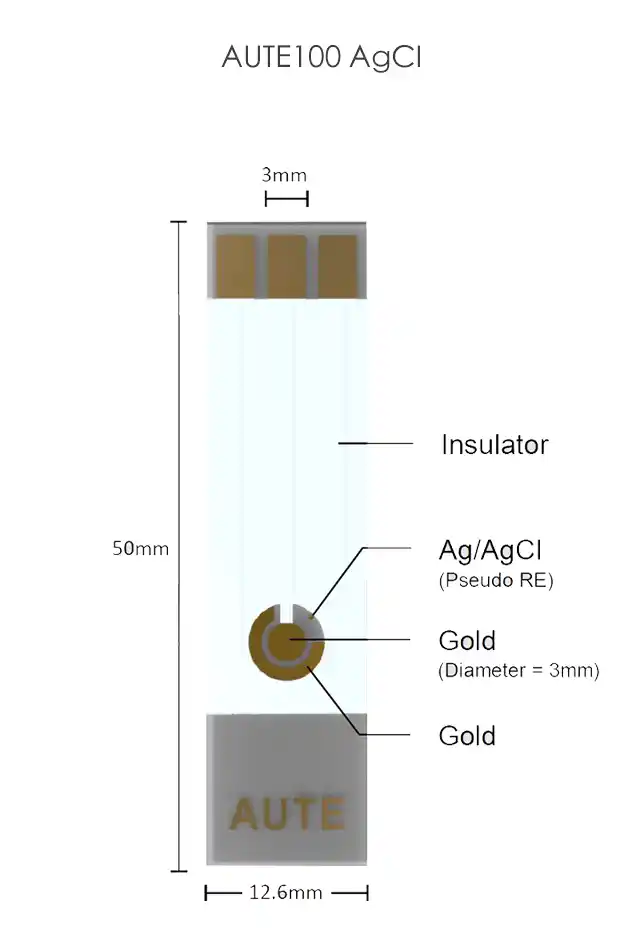

Interdigitated electrodes

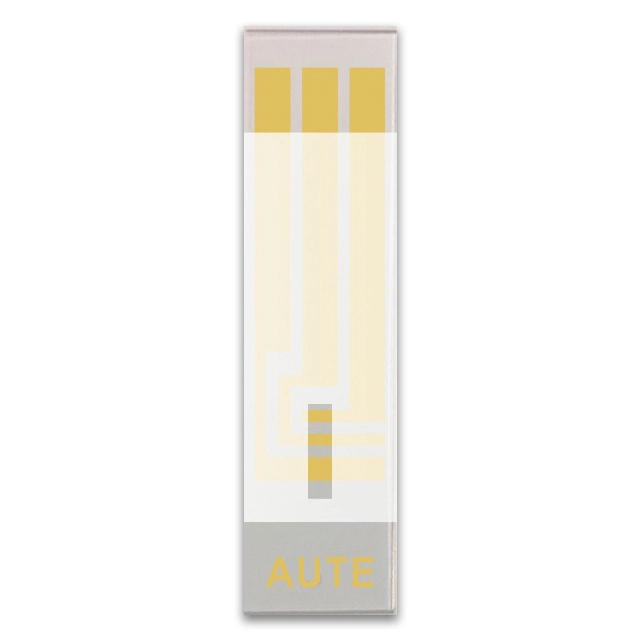

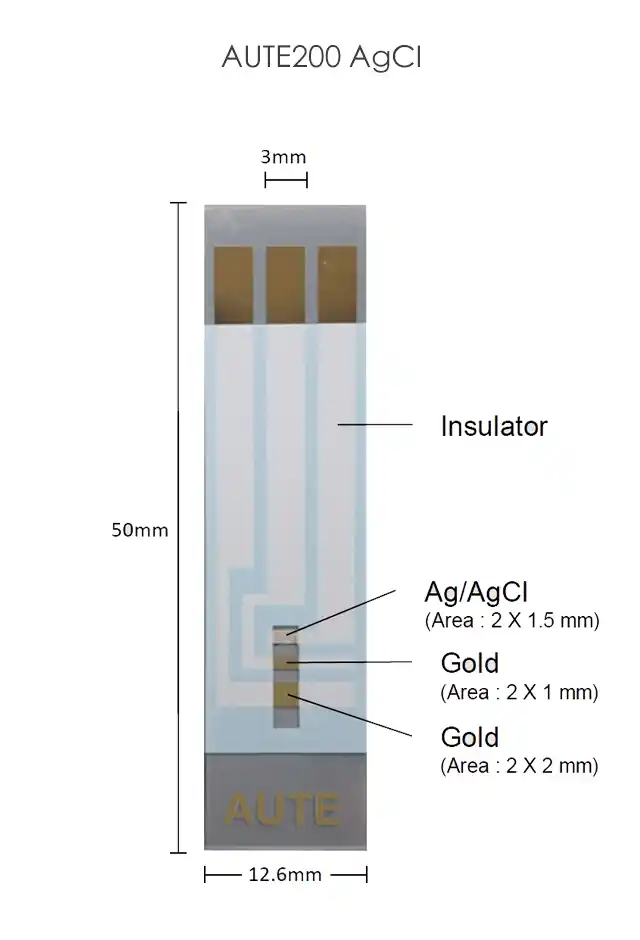

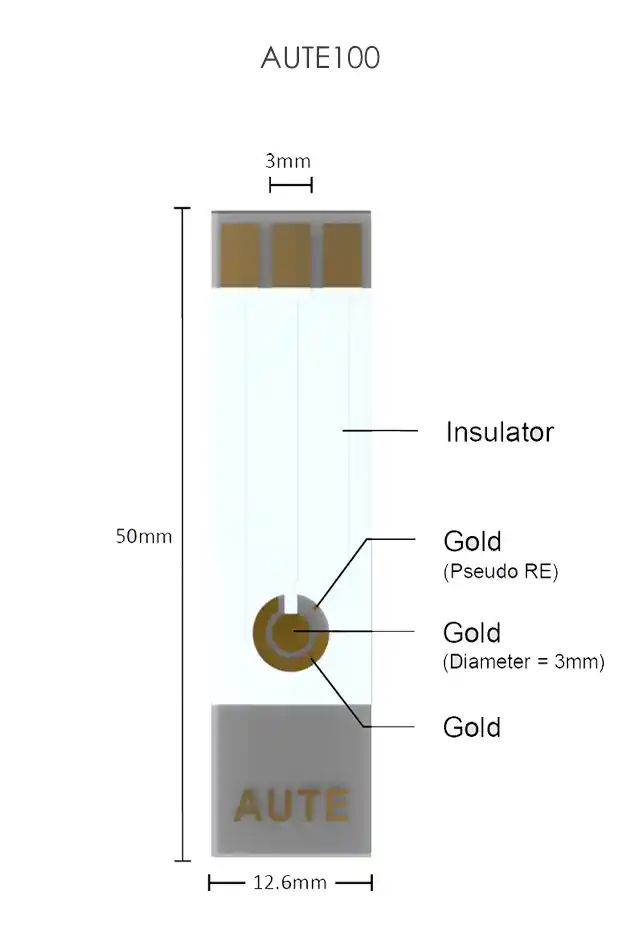

型號AUSE100AUTE100AUTE100AgCIAUTE200AUTE200AgCI
Electrode systemsingle electrode3 electrode3 electrode3 electrode3 electrode
Base platePCPCPCPCPC
Size of base plate(mm*mm12*5012*5012*5012*5012*50
Material of WEGoldGoldGoldGoldGold
Size of WER=5mmR=3mmR=3mmR=2*1mmR=2*1mm
Area of WE (mm2)19.67.17.12.02.0
Material of RE-GoldAgCIGoldAgCI
Area of RE(mm2)-1.01.02.02.0
Material of CE-GoldGoldGoldGold
Area of CE (mm2)-5.05.04.04.0

For lab-research use

In order to meet your special research needs, we can also adjust the design, material and specification of the electrode. let your imagination take you everywhere

For mass production

With our advanced technology and rich experience of product development , we provide you with professional OEM, ODM services

If you have never used SPE before, we offer you a free trial. Come and contact us!
