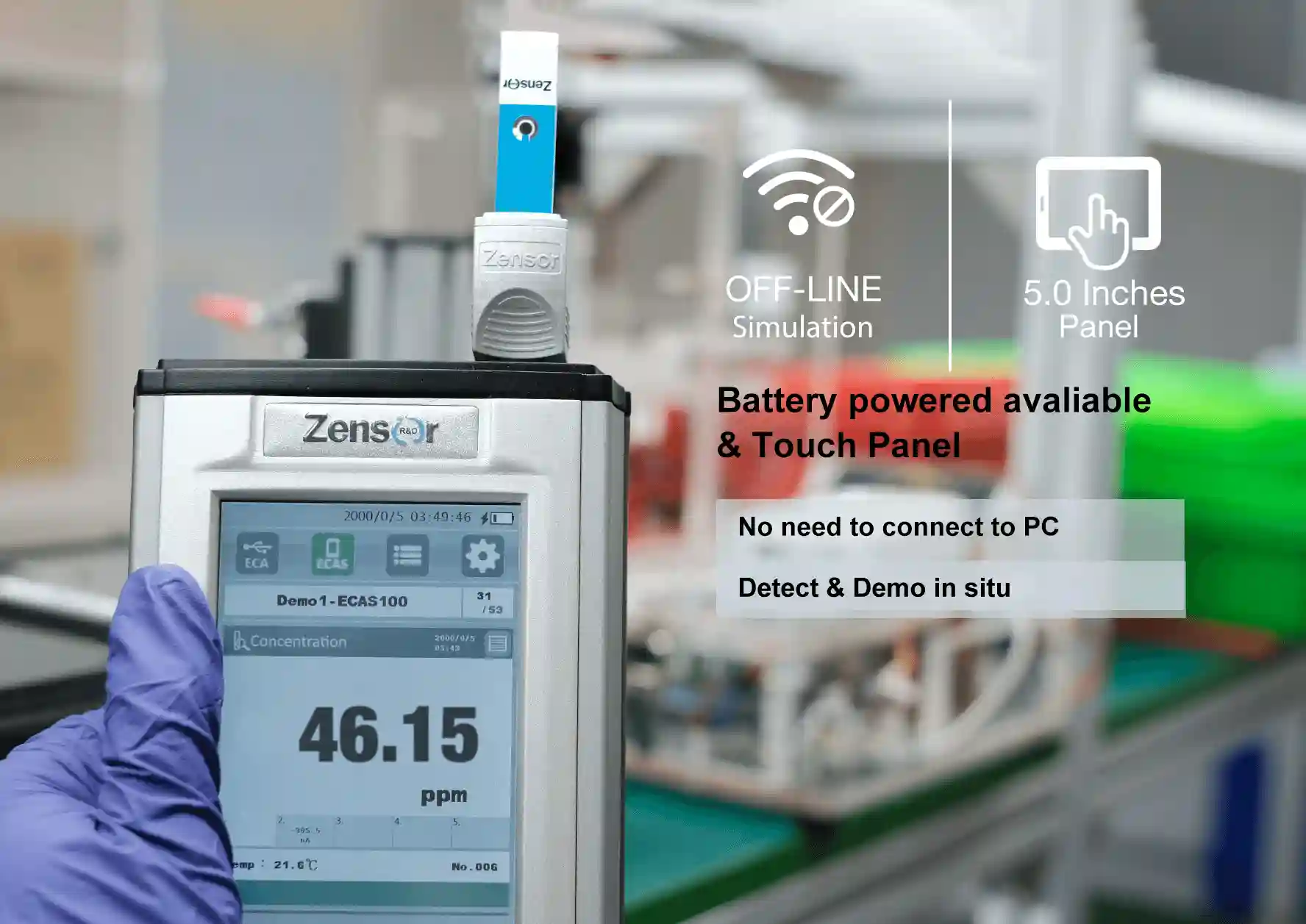

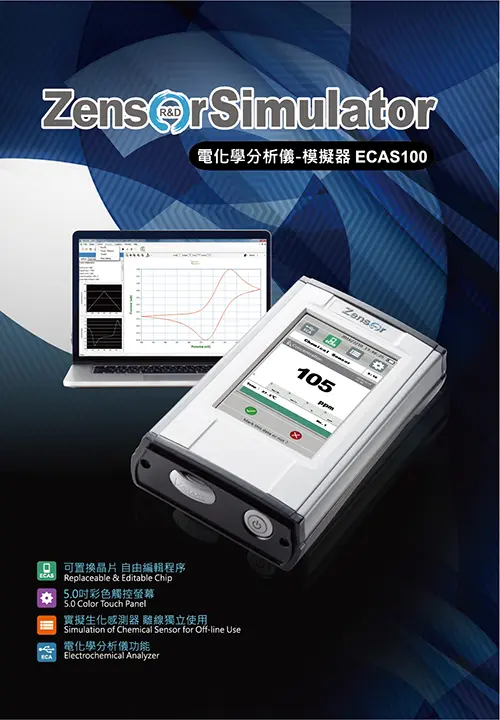

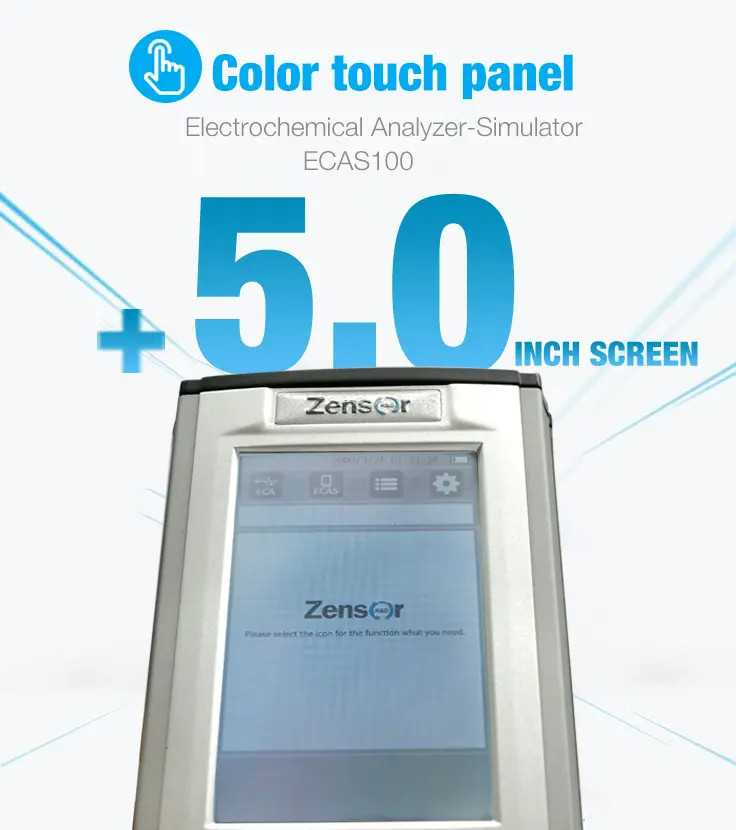

Replaceable and Editable Chip 5.0 Color touch panel Simulation of chemical sensor for off-line use Electrochemical analyzer and potentiostat
Replaceable and Editable Chip 5.0 Color touch panel Simulation of chemical sensor for off-line use Electrochemical analyzer and potentiostat
Electrochemical Analyzer（ECA）
CV (Cyclic Voltammetry)
LSV (Linear Scan Voltammetry)
SWV (Square-Wave Voltammetry)
DPV (Differential Pulse Voltammetry)
IT (Amperometry)
OCP (Open-Circuit Potential)
It only takes 4 steps to complete process editing
(Procedure / Data analysis / Concentration transfer / Action to burn-in)
Each ECA methods can be edited interchangeably
(CV / LSV / SWV / DPV / IT)
Match up the sample injection status for interchangeable editing
(Wating for sample / Wating for second / Wating for trigger button)
| Main Function | (A)ECA(Electrochemical Analyzer) with On-line (B)ECAS(Electrochemical Analyzer Simulator) with Off-line |
|---|---|
| Characteristic | (A)ECA/ECAS mode change (B)ECAS for application in real smample testing with off-line (C)Flexble edit program for operation of ECAS with off-line (D 5.0 color touch panel for display the result of ECAS with off-line |
| Electrochemical Methods | (A)cyclic Voltammetry(CV) (B)Linear Scan Voltammetry(LSV) (C)Square Wave Voltammetry(SWV) (D)Differential Pulse Voltammetry(DPV) (E)Amperometry(IT) (F)Open Circuit Potential - Time(OCP) |
| Range | (A)Voltage range: +2~-2(V) (B)Current range: 10-3~10-9(A) (C)Data records number in ECAS mode: 100 data records |
| Operation system | window XP above |
| Power input | 5V, 1600mA |

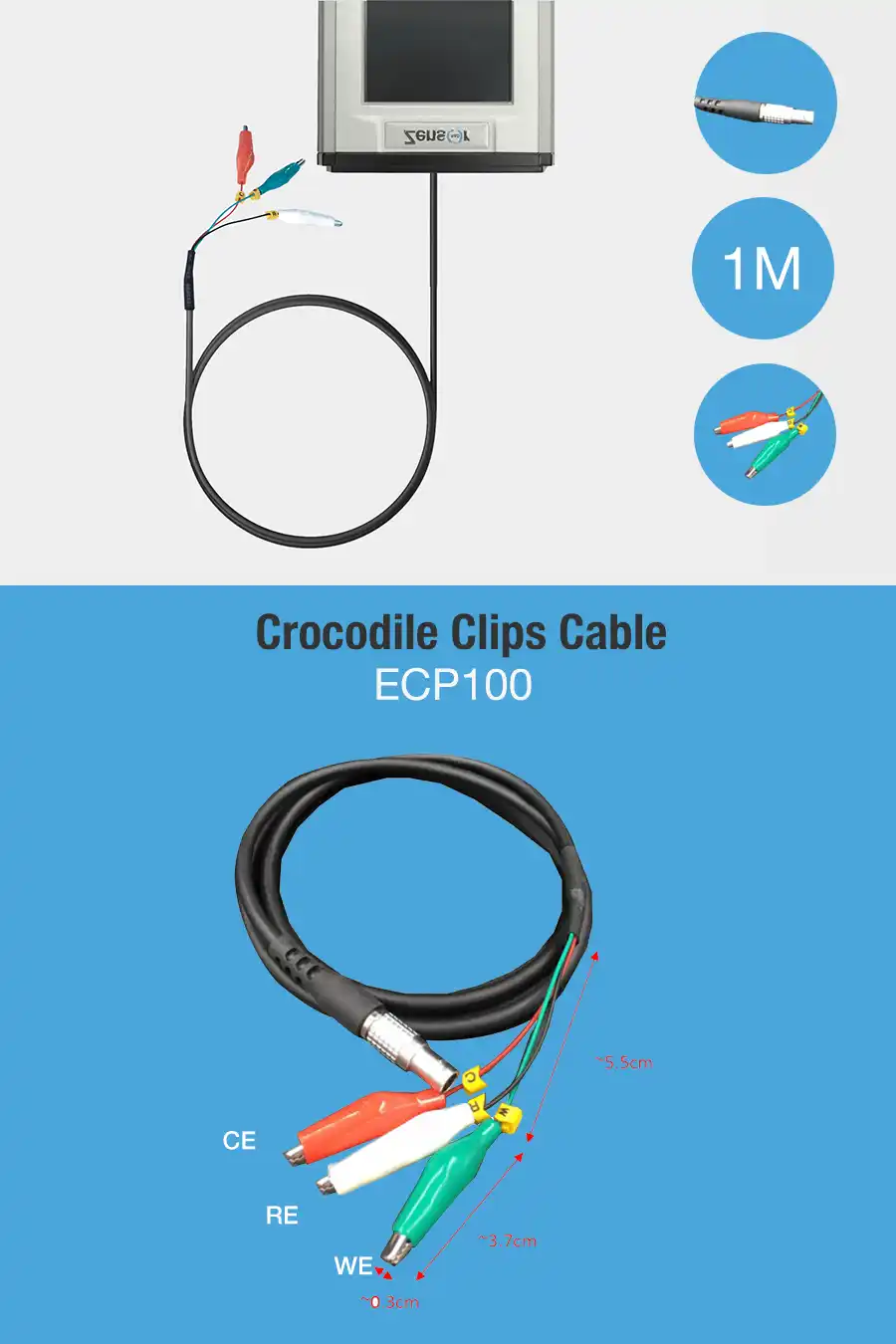

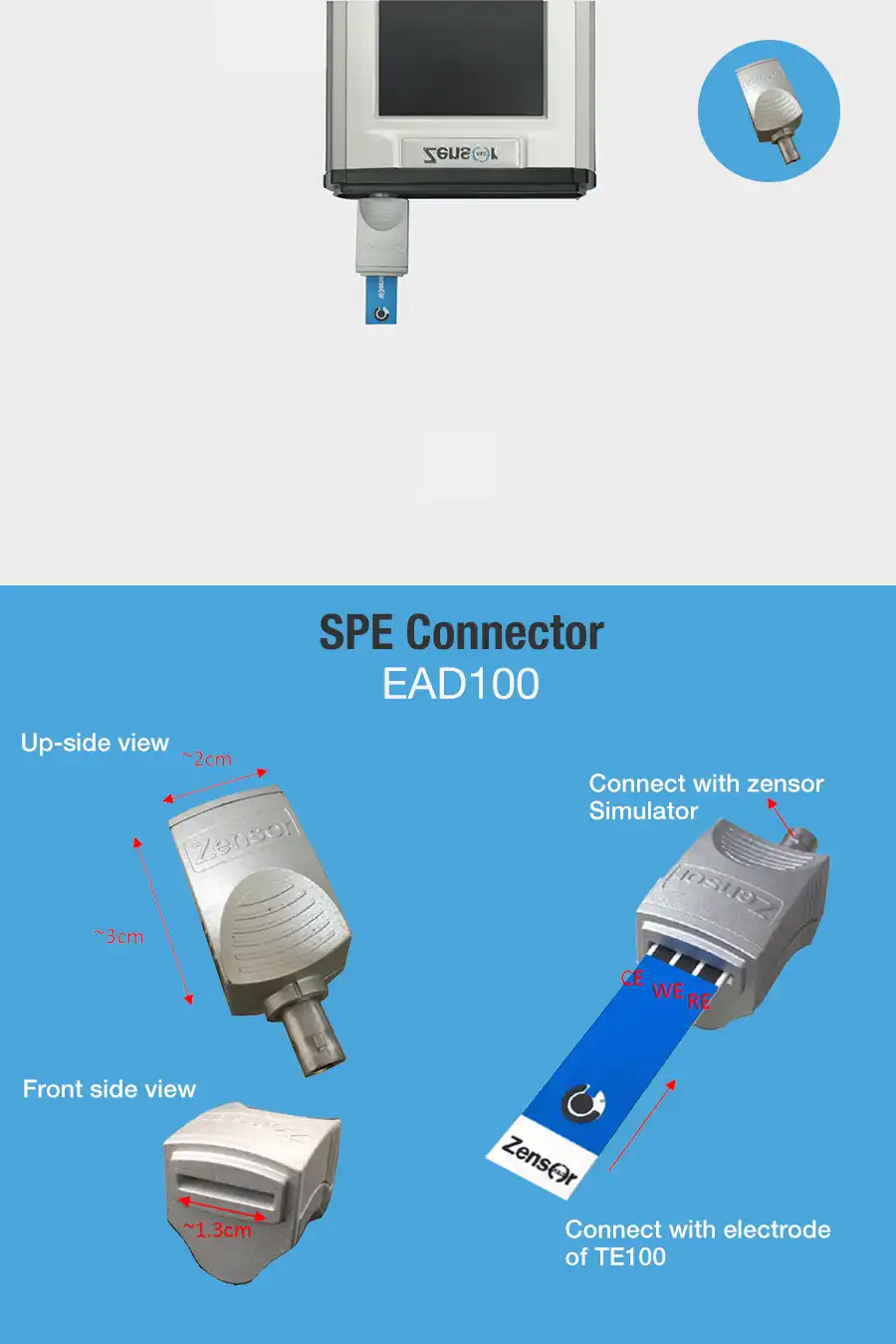

| Sensor connector color | (A)Green color - Working electrode(WE) (B)Red color - Counter electrode(CE) (C)White color - Reference electrode(RE) |

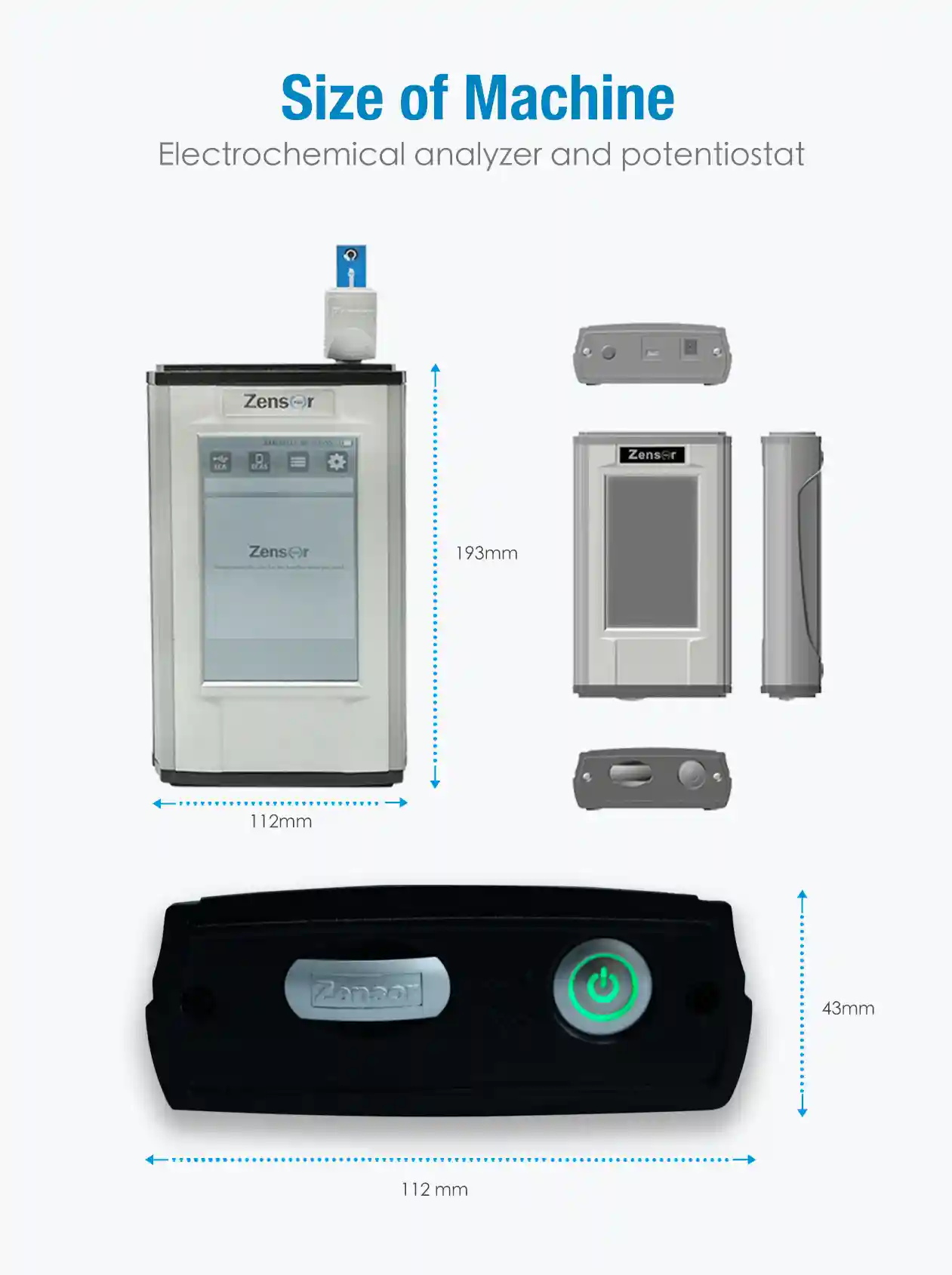

| Size of machine | 193(L) x 112(W) x 43(H) mm |
 |  |  |  |  |
|---|---|---|---|---|
| ECWP100single | ECWP100plus | MCP100 | ECAS100 | ACIP100 |
| wireless | Wireless | USB powered | USB and battery powered + Offline use | USB and battery powered + Offline use |
| - | - | - | Simulation（editable chip）Note.1 | Simulation（editable chip）Note.1 |

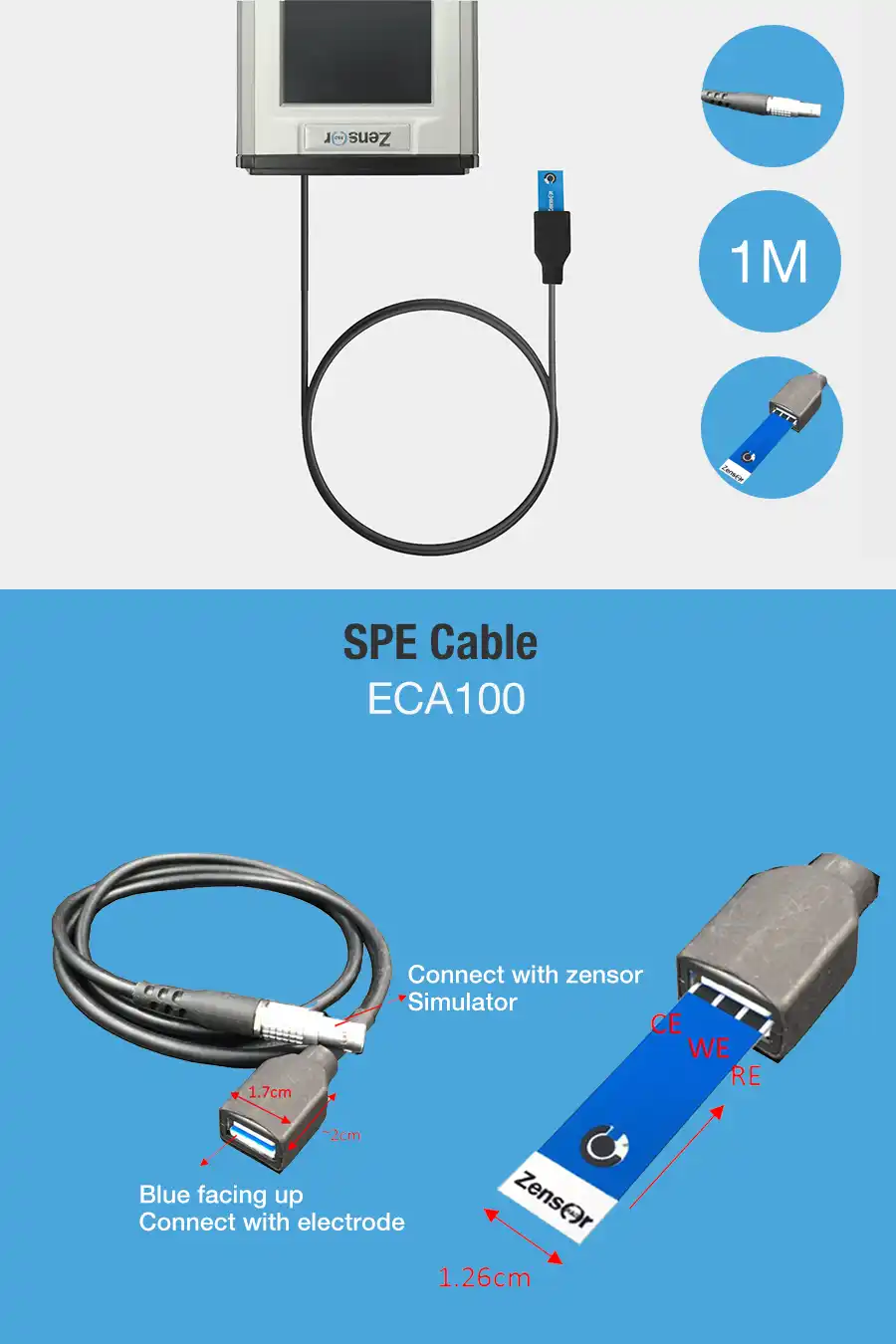

| SPE availabel | SPE availabel | SPE availabel | SPE availabel | SPE availabel |
| 3 clips connector available | 3 clips connector available | 3 clips connector available | 3 clips connector available | 3 clips connector available |
| Single-channel | Maximum 8 channels | Channels 2-8 are available | Single-channel | Single-channel |
| Need PC | Need PC | Need PC | 5.0 touch panel | 5.0 touch panel |
| CV/LSV/SWV/DPV/IT/OCP | CV/LSV/SWV/DPV/IT/OCP | CV/IT/OCP | CV/LSV/SWV/DPV/IT/OCP | CV/IT/OCP |
| - | - | - | - | ACIP |
| - | - | - | - | IMPT |
| - | - | - | - | IMPE |
| +2~-2V | +2~-2V | +2~-2V | +2~-2V | +2~-2V |
| 10-3~10-9A | 10-3~10-9A | 10-2~10-10A | 10-2~10-10A | 10-2~10-10A |
| Detail-Info | Detail-Info | Detail-Info | Detail-Info | Detail-Info |

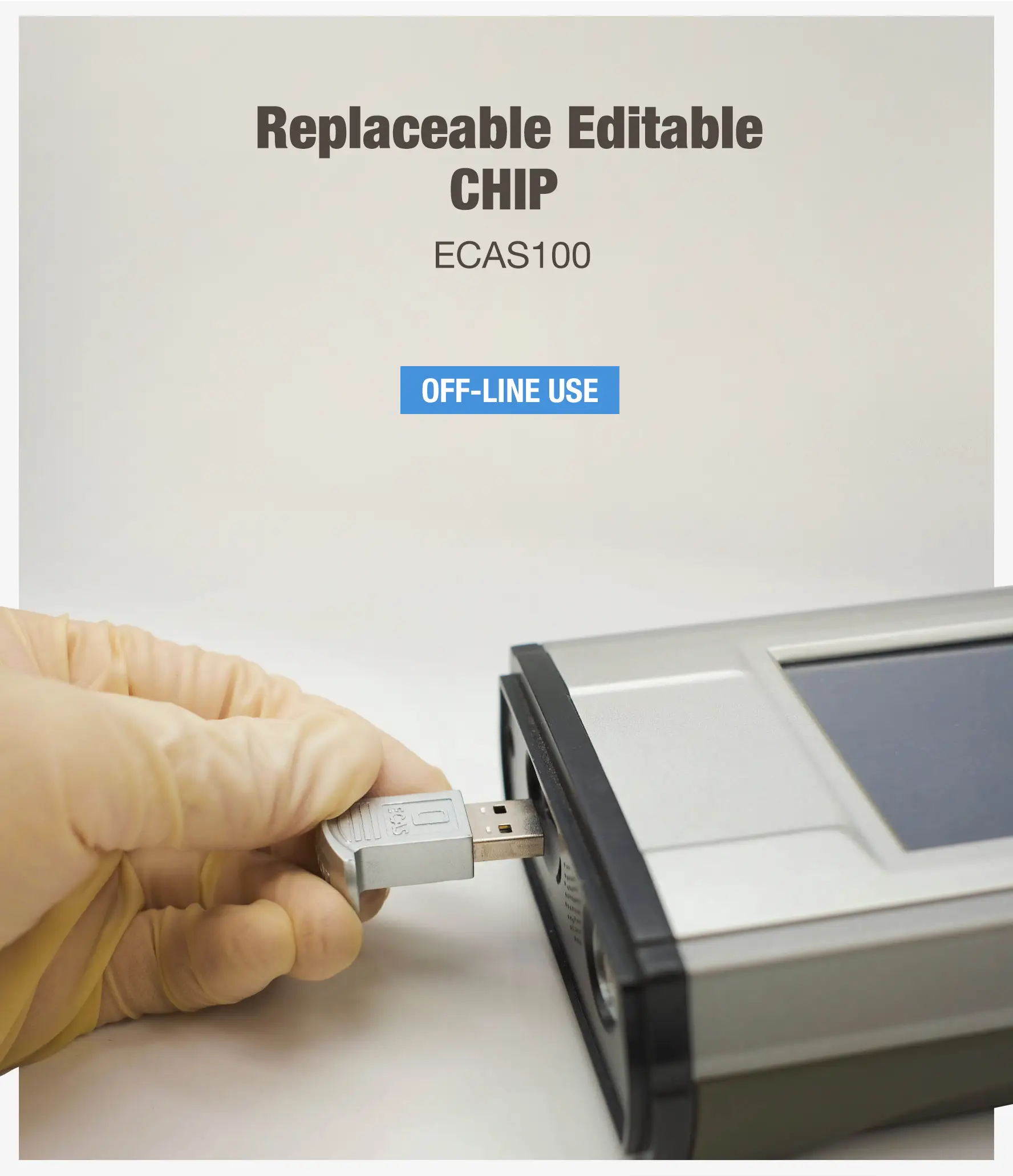

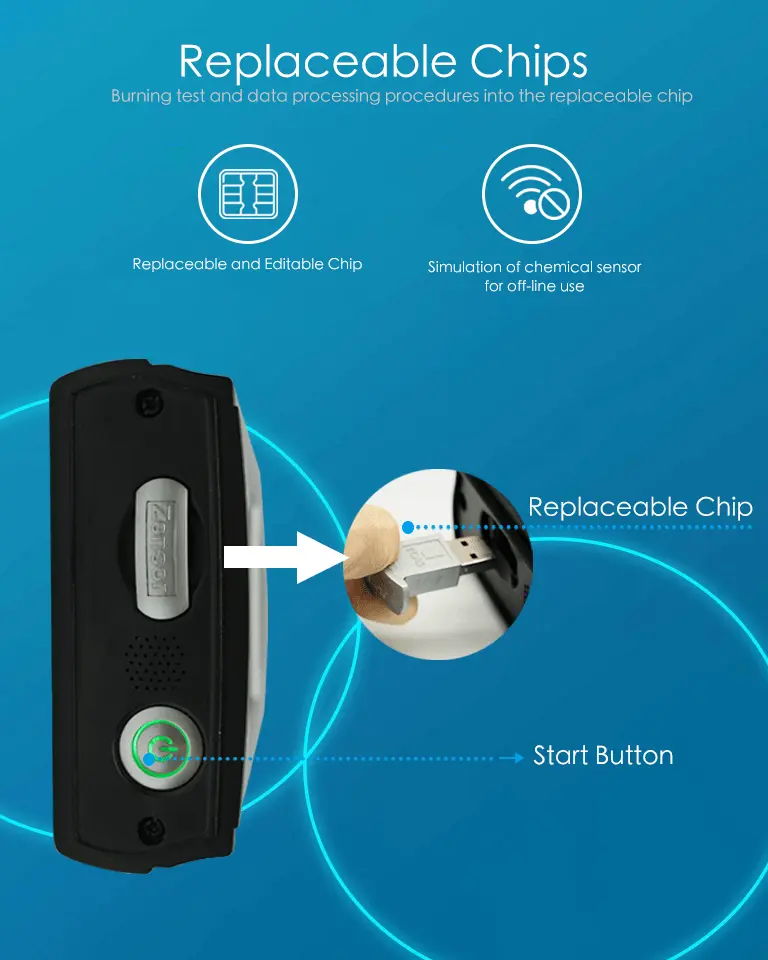

Note1：Simulation function-The test steps can be burned into a replaceable chip, so a large number of test samples can be tested offline, and the required values can be read directly on the panel .That will simulate the process of product model development.
